S/S Mesh, Fasteners and Sewing Threads
Click on shortcuts below for specific items
Removable Insulation Covers ∙ General Steel Fasteners ∙ Ceramic Fibre Insulation Anchors • S/S Mesh • Hooks, Pins and Washers, etc. • Domcaps • Tacker/Staple Gun • Sewing Threads • Fire Retardant Velcro
| S/S Mesh
|
|
| Darco Stock Code
| Description
|
| SSM304/C/1060/G/32M | S/S KNITTED mesh Stocking 304 tubular wire dia. 0.28mm, 1060mm tube flat width, cleaned and curl resistant. - General Purpose.
- Most popular for removable insulation covers hot face for engine exhaust systems.
|
| SSM316/C/1060/G/32M | S/S KNITTED mesh Stocking 316 tubular wire dia. 0.28mm, 1060mm tube flat width, cleaned and curl resistant. Marine Grade Higher Corrosion Resistance for outdoor applications including: - removable insulation covers
- zoo mesh bird and animal enclosures.
|
SSWM304/10/1550 | 304 S/S WOVEN mesh, aperture 1.64 mm, No 10 mesh, wire 0.9 mm, 1550 mm wide x 30 m roll (standard). Meets DFES Bushfire Protection standards to be used as an ember guard |
Metal Insulation Pins Catalogue  | |
| Darco Stock Code | Description |
| SSLAW/65/S
| 304 S/S Lacing Anchor with speed washer 14G, Square head (Stronger) - Comes in a set as per image shown |
| SSLA/63/14G/P
| SS Lacing Anchor LA142 14G (2.0mm) 2.5inch (63mm) - Now with a new, stronger 1.3mm plate, and a smoother rounded hook |
| SSLA/114/14G
| SS Lacing Anchor 14G. (2.0mm) 4.5inch (114mm) |
| SSW/25/14G
| SS Lacing Washer 14G (2.0mm), 25mm Dia. |
| SSW/38/14G
| SS Lacing Washer 14G (2.0mm), 38mm Dia. |
| SSLH/14G
| 304 SS 1 Hole lacing hook 14Ga |

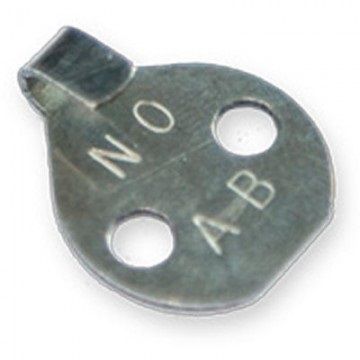

| SSTHLH/14G
| 304 SS 2 Hole lacing hook 14Ga |

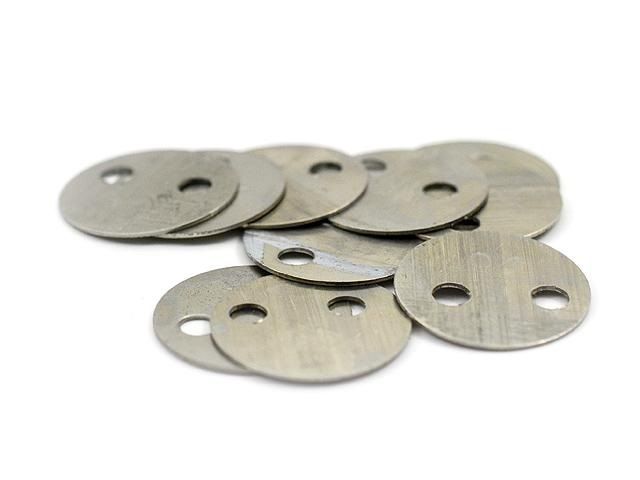

| SSTHLW
| 304 SS lacing washer 12GA with 2 holes |
| SSQP/63/14G
| SSQP/63 Quilting Pin, 14G 2.5 inch 63mm Long |
| SSQP/114/14G
| Quilting Pin, 304SS, 14 Gauge 114mm Long |
| SSTW0.9/G
| SS tie wire 0.9mm x Ave 13.82 kg spool (Nom. 200m/kg) |
| CAPSTAN
| Capstan Rivet, 302 HQ SS
|
| CAPSTAN-WL | Washer 5 x 20 x 0.75 mm (2 per capstan) |
| CAPSTAN-WL/THICK | Washer 5 x 20 x 1.20 mm (2 per capstan) |
| SS/SPRING/304
| 70mm 304 S/S Spring with large Key Ring included - Basic Version hook |
| DOMCAP/C
| Dome Cap 14 GA Aluminium to suit 2mm pins |
| DOMCAP/WH/NIP
| DOMCAP "Nipple" Type Insulation Fixing 304 S/S with White Plastic Coating Cap 38mm dia - 12g 500/pack |
| O RING 1/2" ID
| Zinc Alloy Lacing O Ring 1,000pce/pack - 1/2" (12.7mm) ID 11/16" (17mm OD) |
SSD25/304 (Clearance)
 | 304 S/S "D" Ring Buckle 25mm - 1,000/pack |
Tacker Gun / Stapler and Accessories
| Darco Stock Code | Description |
| TSG/H
| Insulation Tacker, Type "H", Staple gun (complete) Tacker Accessories Brochure |
| TSSS14/30
| SS staples 14/30mm, 10,000 per pack |
| Accessories | |
| TSSTHLH/1000/C | Stainless Steel 2 Hole lacing hook 1000 per PACK |
| TSSTHLH/2000/C | Stainless Steel 2 Hole lacing hook 2000 per PACK |

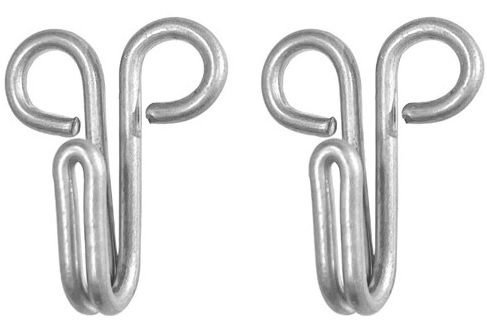

| TBRTHLH/1000/C | Brass wire lacing hook 1000 per pack |
| TSSTHLW/C | Stainless Steel Two Hole lacing washer 1000 per pack |
Sewing Threads
| Darco Stock Code | Description | Spool length (Mtrs) | SS Grade | Kg/Spool | Diam. mm | Unit |
| KEV/SS/THREAD (10 Strand)
| Kevlar 10 wire, Helios K, Dtex 2100, Nom 2000 M/lb, 60 N breaking strength. Recommend size 22 needle. Rated to 1000°C with no stress and 600°C with stress.
| 2000 | 316 | 0.45 | 0.4 | Spool |
| KEV/SS/THREAD2 (8 Strand)
| Inox-Twaron, Dtex 2100, Nom 2000 M/lb, 81 N breaking strength. Recommend size 24 needle. Rated to 600°C with no stress and 300°C with stress.
| 2000 | 304 | 0.45 | 0.4 | Spool |
| KEV/SS/THREAD2HT (8 Strand) | Inox-Twaron AISI314, Dtex 2100, Nom 2000 M/lb, 81 N breaking strength. - Recommend size 24 needle. Rated to 1,000°C
| 2000 | 314 | 0.45 | 0.4 | Spool |

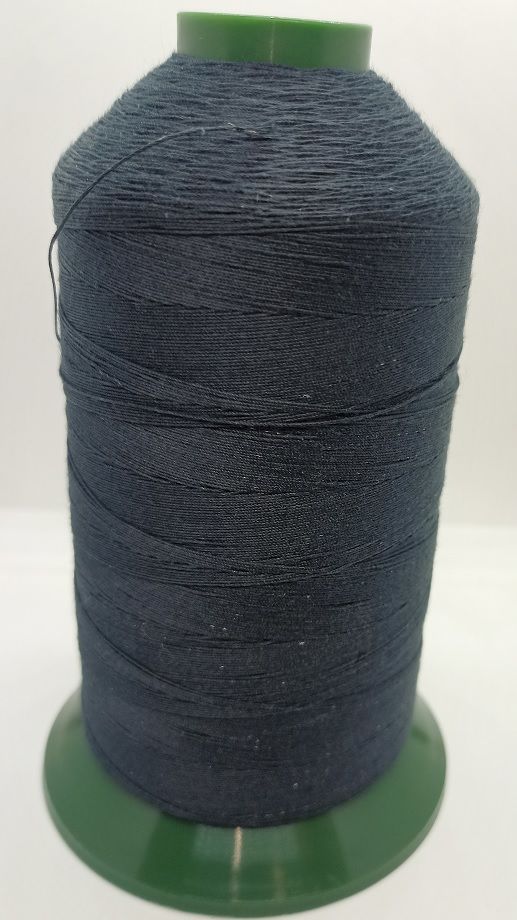

| KEV/SS/THREAD2HT/BLACK (8 Strand)
| BLACK coated Inox-Twaron AISI 314, Dtex 2100 (for enhanced UV protection), Nom 2000 M/lb, 81 N breaking strength. - Recommend size 24 needle. Rated to 1,000°C
| 2000 | 314 | 0.45 | 0.4 | Spool |
| KEV/SS/THREAD3+ (10 Strand)
| Inox-Twaron Dtex 2600. Improved extra Twaron cover on KEV/SS/THREAD3, Nom. 1825 M/lb, 86 N breaking strength. - Recommend size 26 needle. Rated to 1000°C with no stress and 600°C with stress.
| 1825 | 316 | 0.49 | 0.4 | Spool |
| DFST-T
| Fibreglass thread, PTFE x16 ply
| 3000 | - | 1 | 0.46 | Spool |
| R753-12L
| PTFE Coated Fibreglass Thread, Lubricated 0.38mm 3000yds/lbs - 2lb Spool
| 5486 | - | 0.9 | 0.381 | Spool |
| R753-24L
| PTFE Coated Fibreglass Thread, Lubricated 0.53mm 1500yds/lb - 2lb Spool - Mil-C-20079 Type 3, Class 3
| 2743 | - | 0.9 | 0.53 | Spool |
| ET9 – 2835
| ET9-2835 Texturised E Glass Yarn 5kg Spool | 5kg | - | | 0.43 | Spool |
Fire Retardant Velcro
 |
| Darco Stock Code | Description | Roll length | Width |
| VHBFR50 | Hook - 50mm Wide Black Fire Retardant | 25m | 50mm |
| VLBFR50 | Loop - 50mm Wide Black Fire Retardant | 25m | 50mm |
Steel Fasteners for foam, glasswool and rockwool insulation
| Bi-Metal Duct Liner Weld Pins  | | | |
| Darco Stock Code | Description | S/S Grade | Box Qty |
| DDLWP25 (DISCOUNTED) | 1" (25 mm) Duct Liner Weld Pin 25mm, 10 Gauge (3.4 mm) - 1,000/pack (Duo metallic) | Duo | 1000 |
| DDLWP26 (DISCOUNTED) | 1.5" Duct Liner Weld Pin 38mm, 10 Gauge - 1,000/pack (Duo metallic) | Duo | 1000 |
| DDLWP27 (DISCOUNTED) | 2" Duct Liner Weld Pin 50mm, 10 Gauge - 1,000/pack (Duo metallic) | Duo | 1000 |
| DDLWP28 (DISCOUNTED) | 3" Duct Liner Weld Pin 75mm, 10 Gauge - 1,000/pack (Duo metallic) | Duo | 1000 |
| DDLWP29 (DISCOUNTED) | 4" Duct Liner Weld Pin 100mm, 10 Gauge - 1,000/pack (Duo metallic) | Duo | 1000 |
| SHP/114/12G-PERFBASE
| Galvanised Perforated Base Insulation Hanger, 114mm pin, 12G | | |
| SHPW/38/12G
| Galvanised Insulation Hanger Pin Washer - 12ga(2.7mm) 1.5"(38mm) dia. | | |
CERAMIC FIBRE ANCHORING SYSTEMS
|
Darco Stock Code |
Description | Pin Length (mm) | S/S Grade | Unit |
| CFFP115/Z | Stainless steel Twist Lock Pins, 310S/S, 115mm for ceramic fibre anchoring system (Rated to 1000°C) | 115 | 310 | Each |
| CFFP170/Z | Stainless steel Twist Lock Pins, 310S/S, 170mm for ceramic fibre anchoring system (Rated to 1000°C) | 115 | 310 | Each |
| CFFW/Z
| Ceramic Fibre 310 grade S/S Washer, 253MA (Rated to 1000°C) | - | 310 | Each |
| CFFW50
| Ceramic Cuplock, 50mm (Rated to 1400°C) - for use with twist lock pins | 50 | - | Each |
