Safety Welding Protection
All items with a Darco Stock Code are bulk imported and in stock.
Darco Industries core stock lines for safety welding protection including fiberglass and silica fabrics in roll form and ready-made or custom made safety welding blankets and screens. Translucent plastic screens are also available, plus a range of leather welding blankets and associated protective clothing.
Click on shortcuts below for specific items
• Filament • Vermiculite • Heat Treated • Neoprene • Silica • PVC Screens • Frames • Leather Blankets • Leather Hides • Leather Welding Gloves • Leather Rigger Gloves • Leather Aprons • Pre-oxidised Carbon Fibre/Panther Felt • Kneeling Mat
Leather Welding Blankets
Made from premium selected, chrome split leather. These blankets are soft cowhide making it easy to use when protecting objects from weld splatter.
They come with non-corrosive eyelets
Application
Anywhere there is weld splatter or fabrication
Automotive site safety product
E Glass Heat Treated/Caramalised
E glass rated to 550°C
E Glass Filament
E glass rated to 550°C
Silica Welding Blankets
|  |  |
Silica Vermiculite Coated Fabrics rated to 1100°C
Best Selling Welding Blanket
The choice of major mining companies (See Blue Banner Report above)
| Darco Stock Code | Size | Description | Grams / m2 | Nom. Thickness mm | Cont. Temp ºC | Melting Temp ºC |

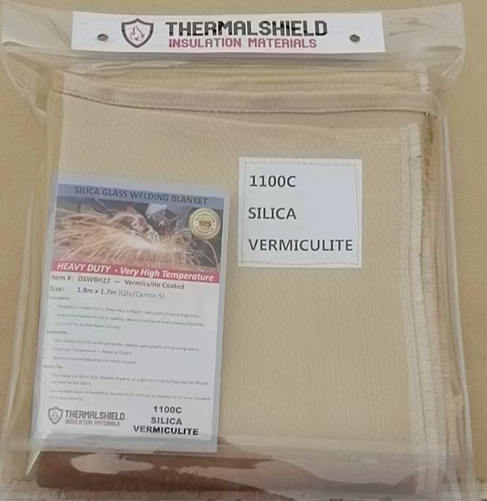

| DSWBH22 | 1.8m x 1.7m | Welding Blanket with Eyelets Silica cloth vermiculite coated (tan) for enhanced abrasion resistance. (3.06m2) | 1300 | 1.3 | 1100°C | 1400°C |
| DSWBH22/ | 1.8m x 1.7m | SPECIAL ORDER COMPANY LABELLED WELDING BLANKETS | 1300 | 1.3 | 1100°C | 1400°C |
| DSWBH2.4X1 | 2.4mx1m (2.4m2) | Welding Blanket with Eyelets Silica cloth, vermiculite coated (tan) for enhanced abrasion resistance (2.4m2) | 1300 | 1.3 | 1100°C | 1400°C |
E Glass Vermiculite
Vermiculite Coated E glass rated to 700°C continuous and 1000°C short term spatter.
Vertical and horizontal applications, similar to T1000 coating
E Glass Neoprene/Black Acrylic
E glass rated to 550°C. Coating provides fibre encapsulation and enhanced burn through resistance with burnt coating forming insulating char on base fabric
PREOXIDISED CARBON FIBRE MAT - PANTHER FELT
Darco DPCM Series (also known as Panther Felt) is a Pre-Oxidized Carbon Fibre Felt inherently flame resistant insulation that can withstand short term temperatures up to 1000°C / 1800°F with continuous temperatures of 400°C. This high temperature felt is woven from Polyacrylonitrile fibers (PAN fiber), a precursor to carbon fiber.
Click here for more on our Panther Felt
| Darco Stock Code | Description | Grams | Thickness | Temp |
| DPCM600/5 | Carbon Fiber Mat 5mm Thick Pre-oxidised 600gsm, 1m x 50m roll | 600m² | 5mm | 1000°C |
Welding Pillow/Hassock
Leather over foam For kneeling or leaning on hot surfaces to 200°C or E glass fabric over E glass needled mat to 550°C
Darco Stock Code | Description |

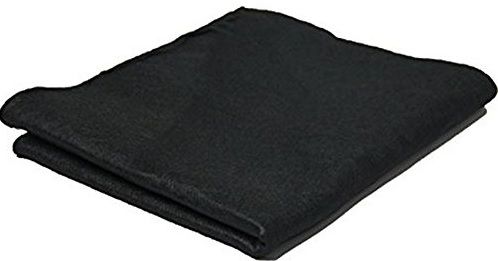

LEANING MAT
| Heat Mat 700mm x 700mm x 14mm Leaning Mat. Rated to 550°C Leaning Mat, Neoprene/Black acrylic coated fabric outer with a 25mm E glass mat infill. better for kneeing on and they take much hotter temp than leather pillows |
Darco Stock Code | Description |
DWP04/50 | Welding Pillow/Cushion - Full Leather Cover - 0.4m x 0.4m x 50mm Rated to 200°C |
Safety Welding Screens
Standard BS EN 1598:2011
| Darco Stock Code | Size | Description |
| DWS66R | 1.8m x 1.8m | Welding Screen PVC Red size 6' x 6' c/w welded plastic eyelets |
| DWS66G | 1.8m x 1.8m | Welding Screen PVC Green size 6' x 6' c/w welded plastic eyelets |
| DWS66A | 1.8m x 1.8m | Welding Screen PVC Amber size 6' x 6' c/w welded plastic eyelets |
| DWS68R | 1.8m x 2.4m | Welding Screen PVC Red size 6' x 8' c/w welded plastic eyelets |
| DWS68G | 1.8m x 2.4m | Welding Screen PVC Green size 6' x 8' c/w welded plastic eyelets |
| DWS69R | 1.8m x 2.7m | Welding Screen PVC Red size 6' x 9' c/w welded plastic eyelets |
| DWSROLL/R | 1.8m x 50m Roll | Welding Screen PVC Red - Full Roll |
| DWSROLL/G | 1.8m x 50m Roll | Welding Screen PVC Green - Full Roll |

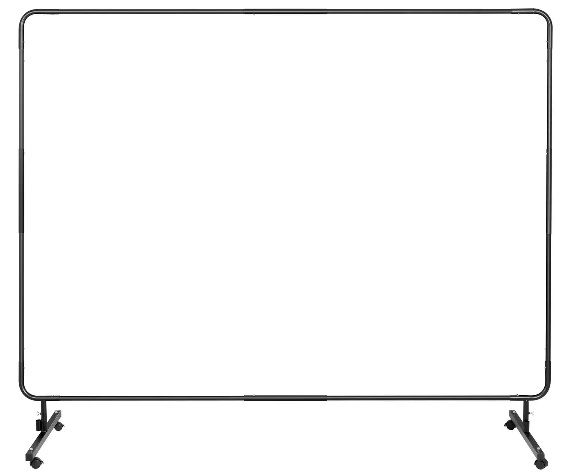

Safety Welding Screen Frames
| Darco Stock Code | Size | Description |
| DWSF66 | 1.8m x 1.8m | TUBULAR FRAME with casters 6' x 6' (Cable ties included) |
| DWSF68 | 1.8m x 2.4m | |
| DWSF69 | 1.8m x 2.4m | TUBULAR FRAME with casters 6' x 9' (Cable ties included) |
Leather Welding Aprons
Darco welding aprons are made from High Grade Chrome split leather and
equiped with a webbed belt. Constructed from two pieces of leather sewn
together with Kevlar thread. Protects against welding spatter and radiant heat
| Darco Stock Code | Size | Description |
| DLWA/S | 900 x 600mm | Small - Chrome Leather Apron with Straps & Buckle |
| DLWA/L | 1000 x 800mm | Small - Chrome Leather Apron with Straps & Buckle |
WELDING GLOVES
Riggers Gloves
Darco riggers gloves are leather both front and back, we have an elastic wrist band for a tighter and more comfortable fit. They are double Kevlar stitched, with no stitching on the palm for better handling. Our are constructed with winged thumbs. ( the new ones will be size colour coded) and are to AS/NZ safety standard EN:388.
| Darco Stock Code | Size | Description |
| DLRG/W/S | Small | White/Natural Cow Grain Rigger Gloves |
| DLRG/W/M | Medium | White/Natural Cow Grain Rigger Gloves |
| DLRG/W/L | Large | White/Natural Cow Grain Rigger Gloves |
| DLRG/W/XL | X-Large | White/Natural Cow Grain Rigger Gloves |
| DLRG/W/2XL | 2X-Large | White/Natural Cow Grain Rigger Gloves |
| DLRG/W/3XL | 3X-Large |
