Darco Automotive D.I.Y. Insulation Solutions

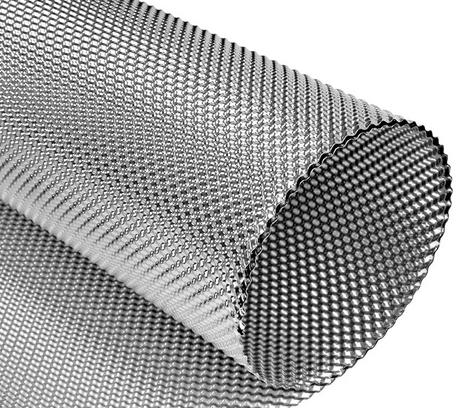

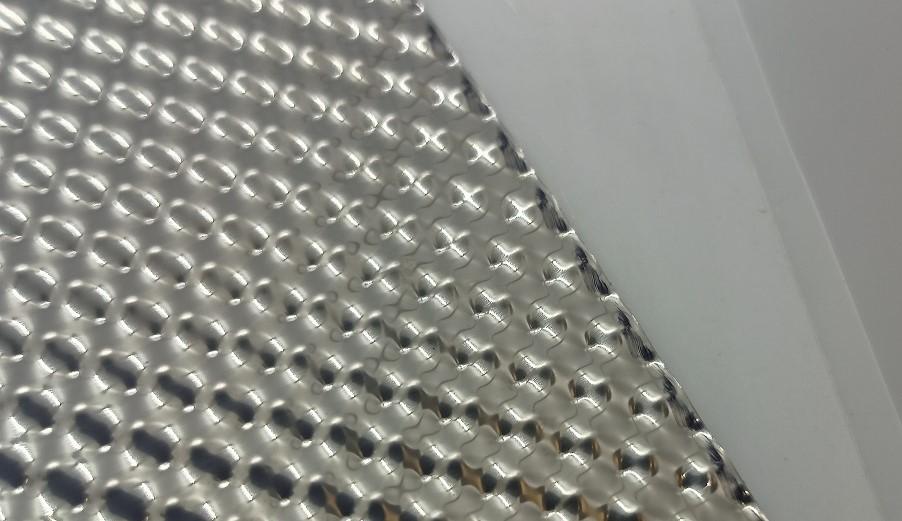

Heat & Noise Shields

Due to the large amounts of heat given off by internal combustion engines, heat shields are used on most engines to protect components and bodywork from heat damage. As well as protection, effective heat shields can give a performance benefit by reducing the under-bonnet temperatures, therefore reducing the intake temperature.  Heat shields can be cut and fitted to any specification.





Exhaust Wrap/Tape

Reduce under-hood and chassis temperatures with exhaust/header wrap

  • Fiberglass (Plain and Coated) 550°C to 800°C
  • Basalt Wrap 800°C to 1000°C
  • Vermiculite Coated
  • Aluminium Foil Coated
  • Silicone Coated




Fix-all Self-fusing Tape

  • Used for split hoses, seals the end of firesleeves
  • Sticks to itself (No adhesive needed)
  • Permanent Seal, Waterproof & Airtight
  • -50º°c up to 260°c
  • Stretches to 250% its original size
  • 25mm Width & 0.5mm Thick
  • Breakdown Voltage: 12kV
  • Available In Red or Black

(More detailed datasheet available)





Darco Industries Fire Sleeves

Darco silicone coated fiberglass sleeves have an extra thick, special formulation of silicone rubber on them. They protect industrial hoses and lines from molten metals, slag, welding splatter, electrical or grinding sparks and contamination. They also provide protection from ozone, UV and abrasion. The standard color of coating is red-oxide. The “danger red” colour of the silicon rubber is due to heavy loading of iron oxide to improve heat resistance. We also have black sleeves available. (Custom colors such as blue, grey, yellow and green are available on indent)

Our Firesleeves are made to AS1072 aerospace standard.

It is an optional extra to have AS1072 printed on sleeves.



Specification

Inner Diameter: from 8mm up to 150mm

Wall thickness: 2.5mm up to 3mm

Coating thickness: from 1mm up to 2.2mm



Application

It is the perfect sleeve and jacket choice for protecting industrial hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires and cables from exposure to high temperature, heat, flame, fire and pyro exposure.

Note: Darco also supplies locally made to order, sewn sleeves (closed edge) or Velcro closed edge



Current Stock

Darco

Description

Roll Length

Inside Diameter (mm)

 Weight kg

Unit
RED
DFSR10 Silicone coated Fire sleeve - Red 20 10 2.00 m
DFSR15 Silicone coated Fire sleeve - Red 20 15 3.00 m
DFSR20 Silicone coated Fire sleeve - Red 20 20 5.00 m
DFSR25 Silicone coated Fire sleeve - Red 20 25 6.60 m
DFSR32 Silicone coated Fire sleeve - Red 20 32 8.40 m
DFSR40 Silicone coated Fire sleeve - Red 20 40 11.00 m
DFSR50 Silicone coated Fire sleeve - Red 15 50 10.80 m
DFSR65 Silicone coated Fire sleeve - Red 15 65 15.00 m
DFSR75 Silicone coated Fire sleeve - Red 15 75 17.55 m
DFSR90 Silicone coated Fire sleeve - Red 15 90 25.50 m
DFSR100 Silicone coated Fire sleeve - Red 15 100 - m
 Black
DFSB8 Silicone coated Fire sleeve - Black 20 8 1.5 m
DFSB12 Silicone coated Fire sleeve - Black 20 12 2.25 m
DFSB15 Silicone coated Fire sleeve - Black 20 15 3.00 m
DFSB19 Silicone coated Fire sleeve - Black 20 19 3.56 m
DFSB22 Silicone coated Fire sleeve - Black 20 22 4.13 m
DFSB25 Silicone coated Fire sleeve - Black 20 25 4.69 m

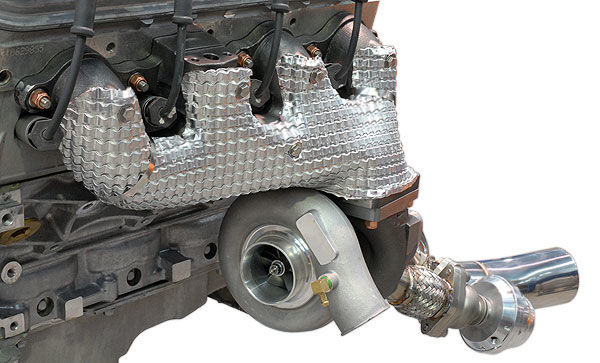

Header Heat Shield

Header Heat Shield

Red Silicone Coated Fiberglass firesleeve with blue flame heat applied

Used to seal the ends of Firesleeves
