Needlemats, Steel Wools, Foils and Heatshields

Needlemat, Steel Wool, Foil and Heatshield

All items with a Darco Stock Code are bulk imported and in stock.

Click on shortcuts below for specific items

MED Cert E Glass • Non-MED Cert E Glass • MED Cert Silica • Non-MED Cert Silica • Foil Faced • Fiberglass roving • Pre-Oxidised Carbon Fibre Mat/Panther Felt • Heatshields • Heatshield Curtains • Embossed • Steel Wool

E Glass Needlemat rated to 600°C Packed 4 x Rolls per pallet	Darco style DENM series Needlemat insulation is composed of 100% selected grade type “E” glass fibres needled together into a mat form. It is non-respirable, incombustible asbestos free and contains no chemical binders. Above all Darco Needlemat has vibration resistant properties allowing it to be successfully used for engine exhaust jacketing, turbo covers and silencer packing. Other uses include seals in the glass industry, oven insulation, industrial furnaces, boilers and kilns and is an exceptional material for use as removable insulation pads for pipes, valves and motors. Freight Charge will apply - Please request transit quote
MED Certified E Glass Needlemat	Description
DENM06/V/30M (MED certified)	E Glass Needlemat 133kg/m³	30	1000	810	6	Roll
DENM12/2000/V (MED certified)	E glass Needlemat 167kg/m³	25	1500	2000	12	Roll
DENM20/3500/V (MED certified)	E Glass Needlemat 175kg/m³	13.7	1500	3500	20	Roll
DENM25/4000/V (MED certified)	E Glass Needlemat 175kg/m³	13.7	1500	3500	20	Roll
NON-MED Certified E Glass Needlemat
Darco Stock Code	Description	Roll Size (M)	Width (mm)	G/m²	Thick (mm)	Unit
DENM06/H/30M	E Glass Needlemat 133kg/m³	30	1000	810	6	Roll
DENM12/H	E glass Needlemat 12mm x 1200mm x 20m 2000gsm 167kg/m³	20	1200	2000	12	Roll
DENM25/L	E glass Needlemat 25mm x 1524mm x 13.7m 4500gsm 180kg/m³	13.7	1524	4500	25	Roll

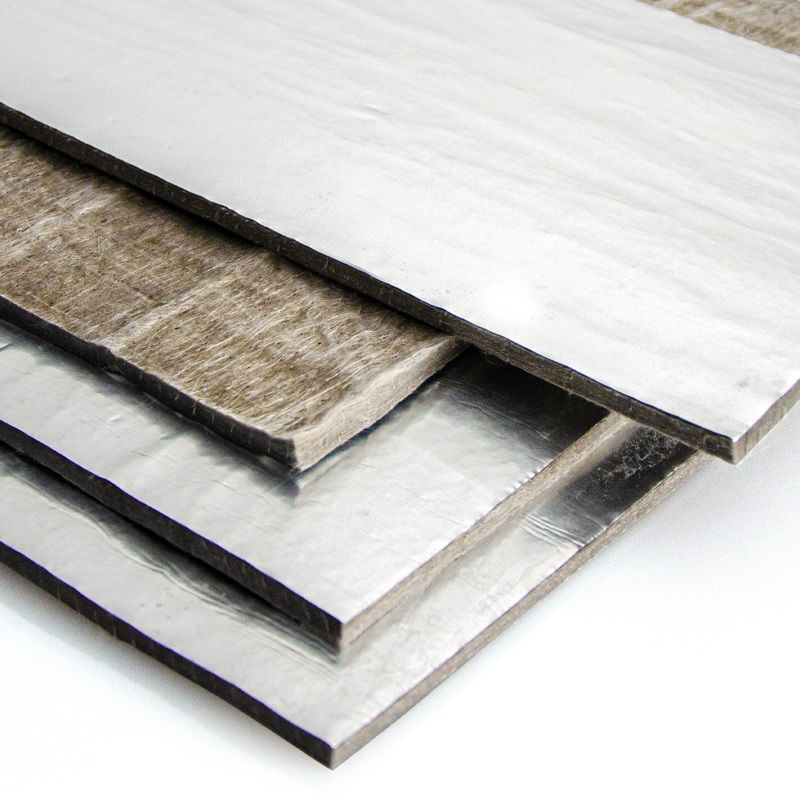

Aluminium Foil Faced
Darco Stock Code	Description
DENM25-H-AL2	Fully encapsulated Aluminium Foil DENM25/H/AL2 Needlemat insulation comprises 100% selected grade type “E” glass fibres needled together into a mat form - 25mm, 180kg/m³	13.7	1524	4500	25	Roll
MED Certified Silica Needlemat Rated to 1000°C Packed 4 x Rolls per pallet	Darco style DSNM series Needlemat insulation is composed of 100% high silica glass fibres needled together into a strong high temperature, corrosion and vibration resistant mat. Silica Needlemat is processed in such a way to maximise thermal and acoustic insulation efficiency. It is non respirable, non-itchy, non-combustible, asbestos free and contains no chemical binders. Above all Silica Needlemat has vibration resistant properties allowing it to be successfully used for engine exhaust jacketing, turbo covers and silencer packing. Other uses include: seals in the glass industry, oven insulation, industrial furnaces, boilers and kilns and is an exceptional material for use as high temperature removable reusable insulation covers. Freight Charge will apply - Please request transit quote PRESHRUNK silica glass needled mat also available on indent
Darco Stock Code	Description	Roll Size (M)	Width (mm)	G/m²	Thick (mm)	Unit
DSNM12/V/20M (Valmiera MED certified)	96% Silica Needlemat - 12mm	20	1500	2000	12	Roll
DSNM25/V/10M (Valmiera MED certified)	96% Silica Needlemat - 25mm	10	1500	4500	25	Roll
Non-MED Certified Silica Needlemat
DSNM12/180/H	72% Silica Needlemat, rated to 800°C, 20m x 1200 mm x 12mm 2000gsm, 167kg/m³, 24 m2/roll	20	1200	2000	12	Roll
DSNM12/PS	Pre-Shrunk Silica Needlemat, rated to 1000°C, 12mm x 914mm x 20m, 1560gsm 130kg/m³	20	914	1560	12	Roll
DSNM25/PS	Pre-Shrunk Silica Needlemat, rated to 1000°C, 25mm x 914mm x 20m 1560gsm 130kg/m³	20	914	1560	25	Roll
PREOXIDISED CARBON FIBRE MAT - PANTHER FELT	Darco DPCM Series (also known as Panther Felt) is a Pre-Oxidized Carbon Felt inherently flame resistant insulation that can withstand short term temperatures up to 1000°C / 1800°F with continuous temperatures of 400°C. This high temperature felt is woven from Polyacrylonitrile fibers (PAN fiber), a precursor to carbon fiber. Click here for more on our Panther Felt
Darco Stock Code	Description	Roll Size (M)	Width (mm)	G/m²	Thick (mm)	Unit
DPCM600/5	5mm Thick Pre-oxidised Carbon Fiber Mat 600gsm	50	1000	600	5	m

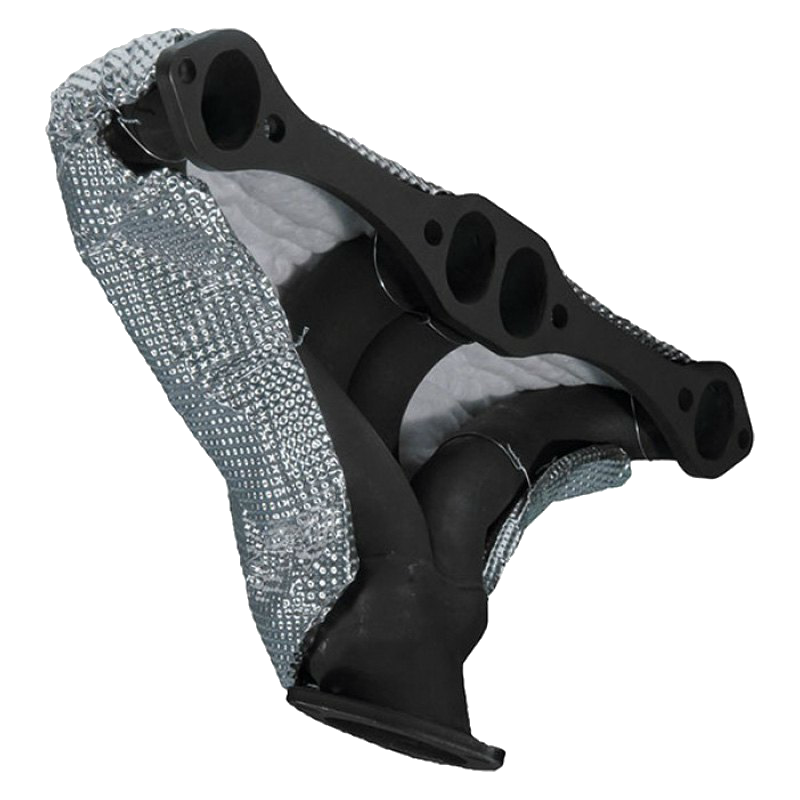

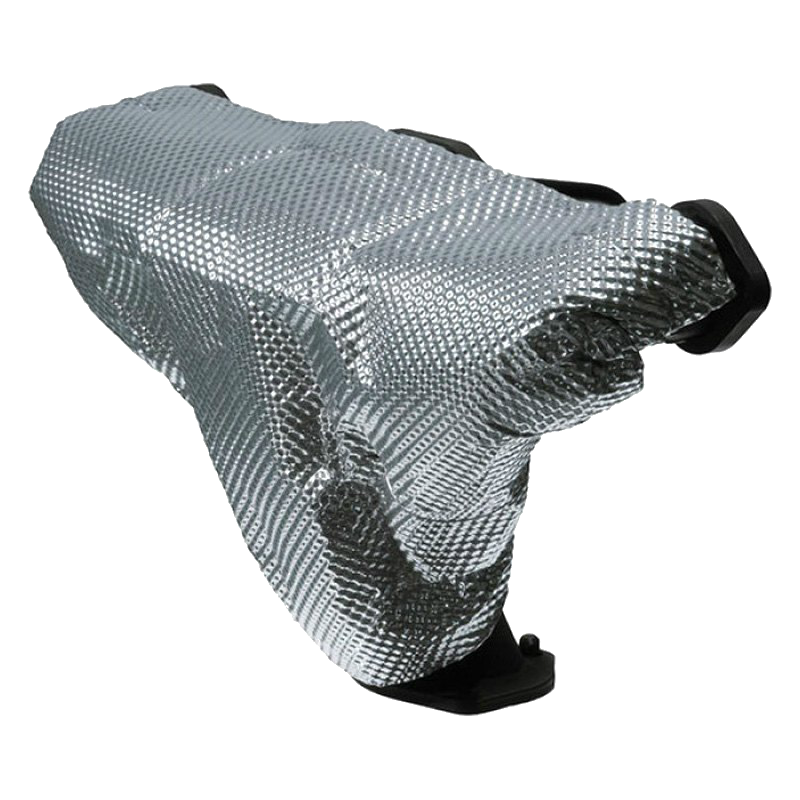

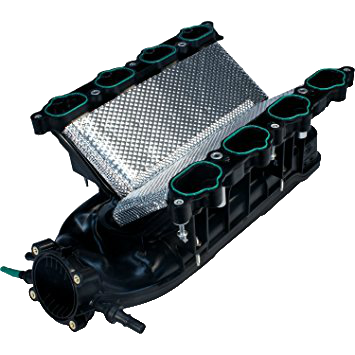

HEATSHIELDS

Stainless Steel Foil Faced Needlemat

Automotive | Insulation solutions

Darco Heat shield special stitch bonded needlemat holds together much better than plain needlemat especially on hot vibrating exhaust systems. The stainless steel foil is more durable than aluminium foil, especially under body for better puncture resistance - Rated to 1000°C.

Insulated heat shields can be made using Darco stocked back up insulation for vibrating engine exhaust systems can be E glass needled mat to 600°C ( 6 mm, 12mm, 20 mm , 25 mm) or silica needled mat to 1000°C (12 mm, 25 mm) or ) for non-vibrating applications use ceramic fibre paper (1 mm, 2mm, 3 mm and 6 mm) or blanket 1260°C (12 mm, 25 mm, 50 mm”.

Darco Stock Code	Description	Length	Width	G/m²	Thick	Unit
HEATSHIELD	Heatshield 0.2mm Embossed Aluminium covering 3mm Ceramic Fibre Paper - Nom 5mm thick rated to 482°C 1m x 0.5m sheets - 10 sheets/Ctn	1000m	500mm	N/A	3.5mm	Each
DEAF/0.1MM	Aluminium Foil EN AW 1050A Temper 0 Soft, 0.1mm thick - Embossing: Carlotte - 1000mm	50m	1000mm	270	0.1mm	m
DESSF/0.05MM (INDENT)	Annealed 304 Stainless Steel Foil 1.4301, 0.05mm thick - Embossing: Grobkorn (coarse grain/stucco) - 1000mm - To be used along with a Ceramic fibre paper	50m	1000mm	400	0.05mm	m
DESSF/0.2MM	Annealed 304 Stainless Steel Foil 1.4301, 0.2mm thick - Embossing: Grobkorn (coarse grain/stucco) - 1000mm - To be used along with a Ceramic fibre paper	30m	1000mm	2333	0.2mm	m
HEATSHIELD/Curtain/S	Fabricated heat shield curtain, 2-layer cloth 650g/m2 Aluminium Foil cloth and 560g/m², 2-sided silicone coated cloth + PTFE thread, with S/S eyelets 100mm C/C around hemmed perimeter. - Used for offshore heat reflective shield.	6m	2800mm	1210	1.1mm	Each

Steel Wool

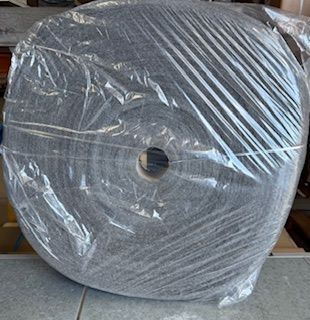

Grade 0 Steel Wool - 5kg per Reel

Application

Mainly for gold electrowinning cell cathodes.

Scrub pads for industrial and commercial applications.

Not ideal for exhaust silencer packing. See SS434WOOL above.

Apart from our focused application of gold electrowinning cell cathodes, Grade 0 is ideal for light cleaning

and surface preparation situations where a slightly more aggressive cutting action is required without the need to strip a finish completely.

It can also be used to dull a gloss finish. Used for fine smoothing and finishing.

Flexible scouring for intricate surfaces.

Must be kept away from all sources of ignition

Suitable for most surfaces including steel, timber, porcelain and glass.

Example: Smooths out stains, heel marks and scratches on floors.

Darco Stock Code	Description
STEELWOOL/0	Steel Wool Grade 0 105mm x 80m 5kg Reel

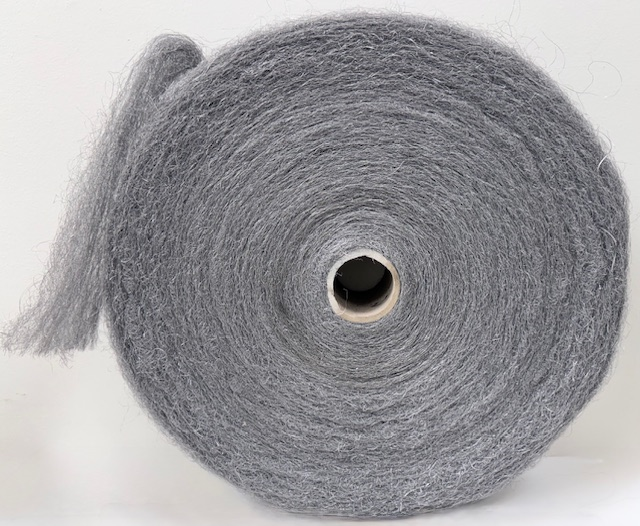

Stainless Steel Wool

434 Stainless Steel Wool 100mm wide - Medium Grade 80-120µ - Between 6.5-9.5kg per Reel ~ 12 reels per 100kg

Application

Especially well-suited for performance exhaust silencer packing, rated up to 850°C application temperature.

Oxidation resistant.

Darco Stock Code	Description
SS434WOOL	Steel Wool 434 Stainless Medium Grade 80-120µ 100mm wide x 80m 5kg per Reel
