Safety Welding Protection
















 FireBlanket • Filament • Vermiculite • Heat Treated • Neoprene • Silica • PVC Screens • Frames • Leather Blankets • Leather Hides • Leather Gloves • Leather Aprons • Pre-oxidised Carbon Fibre/Panther Felt • Kneeling Mat

Fire Blanket


Darco Code Size Description Grams / m2 Nom. Thickness mm Fabric Cont. Temp ºC Melting Temp ºC
FS128/P 1.8m x 1.2m Fire blanket made from Fibreglass fabric. Designed for smothering spot fires and clothing fires. Made to AS 3504. Supplied in red quick release, polyester bag. 430 0.43 550°C 800°C
FS188/P 1.8m x 1.8m Fire blanket made from Fibreglass fabric. Designed for smothering spot fires and clothing fires. Made to AS 3504. Supplied in red quick release, polyester bag. 430 0.43 550°C 800°C

E Glass Filament
Darco Code Size Description (All blankets come with a hem and eyelets except *) Grams / m2 Nom. Thickness mm Fabric Cont. Temp ºC Melting Temp ºC
DEWBFL21 1.8m x 1.2m Filament yarn, General Purpose -  Medium Duty 850 1.7 550°C 800°C
DEWBFH21 1.8m x 0.9m Filament yarn, General Purpose  - Heavy Duty 1700 1.7 550°C

800°C
DEWBFH22 1.8m x 1.8m Filament yarn, General Purpose welding blanket - Heavy Duty 1700 1.7 550°C

800°C

E Glass Heat Treated/Caramalised
Darco Code Size Description (All blankets come with a hem and eyelets except *) Grams / m2 Nom. Thickness mm Fabric Cont. Temp ºC Melting Temp ºC
DEWBHT21 1.8m x 0.9m Texturised Heat-Treated yarn. General purpose. Standard grade (caramelised) tan.  c/w brass eyelets 1150 1.5
550°C 800°C
DEWBHT22 1.8m x 1.8m Texturised Heat-Treated yarn. General purpose. Standard grade (caramelised) tan.  c/w brass eyelets 1150 1.5
550°C

800°C

E Glass Vermiculite
Darco Code Size Description (All blankets come with a hem and eyelets except *) Grams / m2 Nom. Thickness mm Fabric Cont. Temp ºC Melting Temp ºC
DEWBV21 1.8m x 0.9m

Texturised, vermiculite coated (tan) for enhanced abrasion and burn through resistance, c/w brass eyelets. - Heavy-duty

(Vertical and horizontal applications, similar to T1000 coating.)


 1200 2.0
550°C 800°C
DEWBV22 1.8m x 1.8m

Texturised, vermiculite coated (tan) for enhanced abrasion and burn through resistance, c/w brass eyelets. - Heavy-duty

(Vertical and horizontal applications, similar to T1000 coating.)


 1200 2.0
550°C 800°C
DEWBHT22 1.8m x 1.8m

Texturised, vermiculite coated (tan) for enhanced abrasion and burn through resistance, c/w brass eyelets. - Heavy-duty

(Vertical and horizontal applications, similar to T1000 coating.)

 1200 2.0
550°C

800°C

E Glass Neoprene/Black Acrylic
Darco Code Size Description (All blankets come with a hem and eyelets except *) Grams / m2 Nom. Thickness mm Fabric Cont. Temp ºC Melting Temp ºC
DEWBN22 1.8m x 1.8m

Best selling heavy duty, low smoke emitting Neoprene coated - black (c/w brass eyelets)

 1080 1.3
550°C

800°C

Silica Welding Blankets


Darco Code Size Description (All blankets come with a hem and eyelets except *) Grams / m2 Nom. Thickness mm Fabric Cont. Temp ºC Melting Temp ºC
DSWBH21 1.8m x 0.9m

Silica cloth, vermiculite coated (tan) for enhanced abrasion resistance. (1.62m2)

 1300 1.3
1100°C

1400°C
DSWBH22 1.8m x 1.7m Silica cloth, vermiculite coated (tan) for enhanced abrasion resistance (3.06m2) 1300   1100°C

1400°C


Silica Blankets - Bonus Upsize Specials




DSWBH2.4X1

2.4mx1m (2.4m2)

Silica cloth, vermiculite coated (tan) for enhanced abrasion resistance (2.4m2)

 1300 1.3 1100°C

1400°C
DSWBH2.4X1.7

2.4mx1.7m (4.08m2)

Silica cloth, vermiculite coated (tan) for enhanced abrasion resistance (4.08m2)

 1300 1.3 1100°C

1400°C

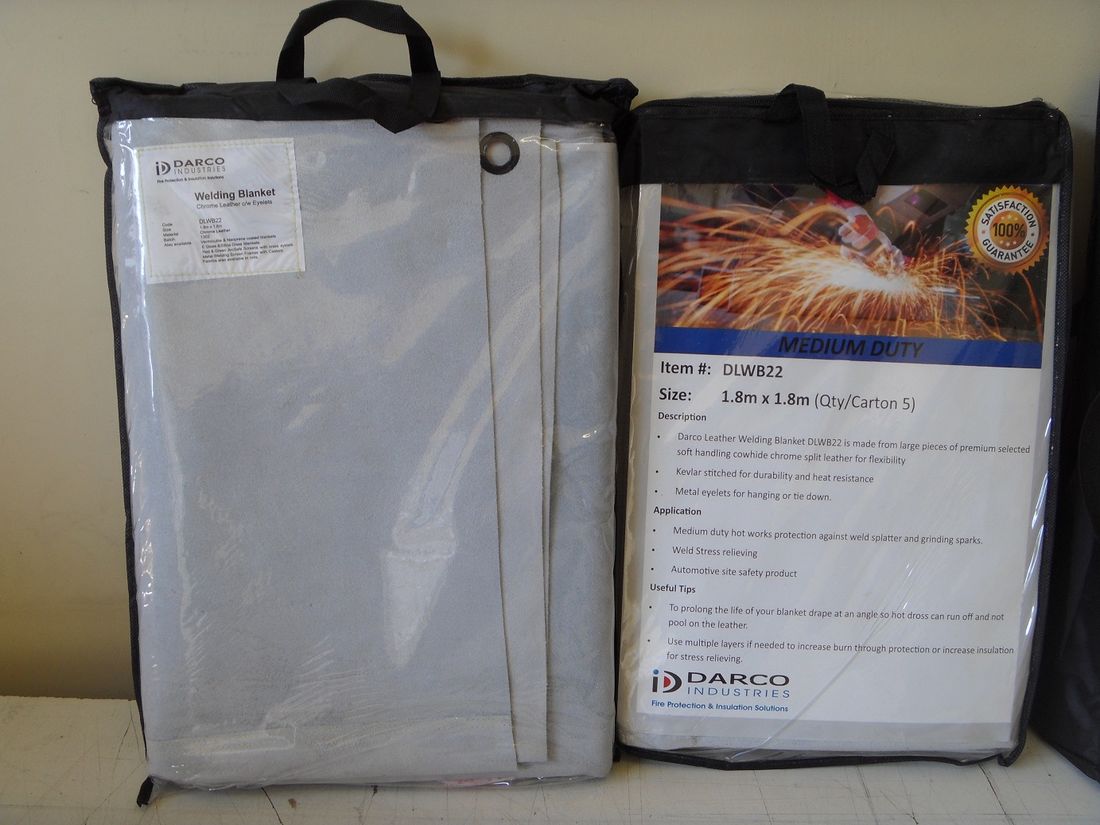

Leather Welding Blankets



  • Made from premium selected, chrome split leather. These blankets are soft cowhide making it easy to use when protecting objects from weld splatter.
  • They come with non-corrosive eyelets

Application

  • Anywhere there is weld splatter or fabrication
  • Automotive site safety product
Darco Code Size Description (All blankets come with a hem and eyelets except *) Grams / m2 Nom. Thickness mm Fabric Cont. Temp ºC Melting Temp ºC
DLWB22 1.8m x 1.8m



Chrome Leather Welding Blanket with Eyelets



 - 1.3 Leather 200°C

-
DLWB22/P 2.0m x 2.0m Chrome Leather Welding Blanket with Eyelets - 1.3  Leather 200°C

-
DLWB32 1.8m x 3.0m Chrome Leather Welding Blanket with Eyelets - 1.3  Leather 200°C

-
DLWB33 3.0m x 3.0m Chrome Leather Welding Blanket with Eyelets - 1.3  Leather 200°C

-

Leather Hides

  • Made from premium selected, chrome split leather. These blankets are soft cowhide making it easy to use when protecting objects from weld splatter.
  • They come with non-corrosive eyelets

Application

  • Anywhere there is weld splatter or fabrication
  • Automotive site safety product
Darco Code Size Description (All blankets come with a hem and eyelets except *) Grams / m2 Nom. Thickness mm Fabric Cont. Temp ºC Melting Temp ºC
DLH-A GRADE 18-20 ft sq per hide

Made from premium selected large piece, chrome split leather. These hides are soft cowhide making it easy to use when protecting objects from weld splatter. They are also easy to sew into customized blankets using Darco KEV-SS-THREAD - Kevlar, SS reinforced thread.

Application

  • Anywhere there is weld spatter or fabrication
  • Automotive site safety product
 - 1.3 Leather
 200°C

-

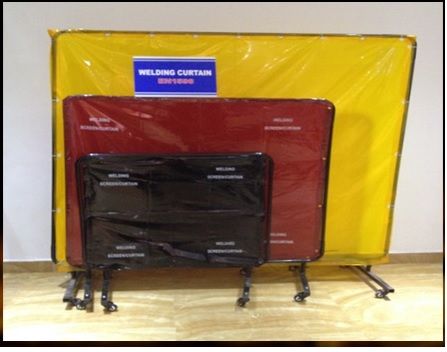

Safety Welding Screens - PVC (Adheres to standard BS EN 1598:2011)
    Darco Code Size Description (All blankets come with a hem and eyelets except *) Grams / m2 Nom. Thickness mm Fabric Cont. Temp ºC Melting Temp ºC
    DWS66R 1.8m x 1.8m

     Plastic ARC SAFE screen Red size 6' x 6' c/w welded plastic eyelets

    		 - - PVC
    		 -

    -
    DWS66G 1.8m x 1.8m

     Plastic ARC SAFE screen Green size 6' x 6' c/w welded plastic eyelets

    		 - - PVC
    		 -

    -
    DWS68R 1.8m x 2.4m

     Plastic ARC SAFE screen Red size 6' x 8' c/w welded plastic eyelets

    		 -

    -

    		 PVC -

    -
    DWS68G 1.8m x 2.4m

     Plastic ARC SAFE screen Green size 6' x 8' c/w welded plastic eyelets

    		 -

    -

    		 PVC -

    -
    DWS69R 1.8m x 2.7m

     Plastic ARC SAFE screen Red size 6' x 9' c/w welded plastic eyelets

    		 -

    -

    		 PVC -

    -
    DWSROLL/R 1.8m x 50m Roll

    Plastic screen Red - Full Roll

    		 -

    -

    		 PVR -

    -

    Safety Welding Screen Frames
      Darco Code Size Description Grams / m2 Nom. Thickness mm Fabric Cont. Temp ºC Melting Temp ºC
      DWSF66 1.8m x 1.8m

      TUBULAR FRAME with casters 6' x 6' (Cable ties included)

      		 - - Steel
      		 -

      -
      DWSF68 1.8m x 2.4m

      TUBULAR FRAME with casters 6' x 8' (Cable ties included)

      		 - - Steel
      		 -

      -
      DWSF69 1.8m x 2.4m

      TUBULAR FRAME with casters 6' x 9' (Cable ties included)

      		 - - Steel
      		 -

      -

      Leather Welding Aprons


        Darco Code Size Description Grams / m2 Nom. Thickness mm Fabric Cont. Temp ºC Melting Temp ºC

        DLWA/S

        		 900 x 600mm

        Small - Chrome Leather Apron with Straps & Buckle

        		 - - Leather
        		 -

        -

        DLWA/L

        		 1000 x 800mm

        Small - Chrome Leather Apron with Straps & Buckle





        Leather Gloves
          Darco Code Description

          DLWG/R

          Darco WELDSHIELD leather welding glove, is a general purpose durable yet economic hot work welding glove used in various Industries.

          • Outmost layer is constructed using RED premium soft shoulder split natural cowhide leather.
          • Inner layer is lined with durable, breathable, sweat absorbent allergy free denim.
          • Kevlar stitched to withstand high temperatures for longer periods.
          • Lined and welted.
          • 406mm (16”) long for forearm protection.
          • One size fits all

          Rated to AS/NZS

          DLWG/G

          Darco WELDSHIELD are a left handed pair for high performance welding glove suitable for use in various industries.

          • Premium quality natural cowhide split leather for economy and comfort.
          • Reinforced from index finger, palm through to wrist for added durability.
          • Inner layer lined with durable, breathable, sweat absorbent allergy free denim.
          • Kevlar stitched to withstand high temperatures for longer periods.
          • Lined and welted.
          • 406mm (16”) long for forearm protection.
          • One size fits all

          Rated to AS/NZS

          DLWG/B

          Darco WELDSHIELD leather welding glove, is a general purpose durable yet economic hot work welding glove used in various Industries.

          • Outmost layer is constructed using BLUE premium soft shoulder split natural cowhide leather.
          • Inner layer is lined with durable, breathable, sweat absorbent allergy free denim.
          • Kevlar stitched to withstand high temperatures for longer periods.
          • Lined and welted.
          • 406mm (16”) long for forearm protection.
          • One size fits all

          Rated to AS/NZS



          Riggers Gloves

          Darco riggers gloves are leather both front and back, we have an elastic wrist band for a tighter and more comfortable fit. They are double Kevlar stitched, with no stitching on the palm for better handling. Our are constructed with winged thumbs. ( the new ones will be size colour coded) and are to AS/NZ safety standard EN:388.
            Darco Code Size Description Grams / m2 Nom. Thickness mm Fabric Cont. Temp ºC Melting Temp ºC

            DLRG/W/S

            Small

            White/Natural Cow Grain Rigger Gloves

            		 - -  Leather -

            -

            DLRG/W/M

            Medium

            White/Natural Cow Grain Rigger Gloves

            		 - -  Leather -

            -

            DLRG/W/L

            Large

            White/Natural Cow Grain Rigger Gloves

            		 - -  Leather -

            -

            DLRG/W/XL

            X-Large

            White/Natural Cow Grain Rigger Gloves

            		 - -  Leather -

            -

            DLRG/W/2XL

            2X-Large

            White/Natural Cow Grain Rigger Gloves

            		 - -  Leather -

            -

            DLRG/W/3XL

            3X-Large

            White/Natural Cow Grain Rigger Gloves

            		 - -  Leather -

            -

            PREOXIDISED CARBON FIBRE MAT - PANTHER FELT

              Darco DPCM Series (also known as Panther Felt) is a Pre-Oxidized Carbon Felt inherently flame resistant insulation that can withstand temperatures up to 980°C / 1800°F. This high temperature felt is woven from Polyacrylonitrile fibers (PAN fiber), a precursor to carbon fiber.
              Darco Code Description Grams / m2 Nom. Thickness mm Fabric Cont. Temp ºC Melting Temp ºC
              DPCM600/5 5mm Thick Pre-oxidised Carbon Fiber Mat 600gsm, 1m x 50m roll 600 5 Pre-oxidised Carbon Fiber 1000°C -

              Kneeling Mats

              700mm x 700mm x 27mm Leaning Mat, Neoprene coated fabric outer and 25mm E glass mat infill.

              • is better for kneeing on and they take much hotter temp than leather pillows
              • Locally made to order - Ask for a quote
              		   27mm Mixed 550°C
