High Temperature Glass Textiles Range

Scrim Description Roll Length (Mtrs)

Width (mm)

Weight g/m2 Thick (mm) Unit

DES02

 Fiberglass Scrim 02 x 02 (STD) - has a resin content of 22%, and an alkali resistant coating.

E glass fiberglass scrim mesh is a high tensile strength; high temperature and corrosion resistant reinforcement material commonly used as a backing for mosaics and stone work and as reinforcement for coatings on industrial vessels, pipes etc. and building walls, roofs and floors.



100 1000 60 +- 5% n/a  Roll

DES10

Fiberglass Scrim 10 x 10 (STD) - has a resin content of 18%, and an alkali resistant coating.

E glass fiberglass scrim mesh is a high tensile strength; high temperature and corrosion resistant reinforcement material commonly used as a backing for mosaics and stone work and as reinforcement for coatings on industrial vessels, pipes etc. and building walls, roofs and floors.

100 1000

60+-

5%

n/a  Roll

Acoustic Fabric

Darco Code Description (Continuous use to 550oC) Roll Length (Mtrs) Width (mm) Weight g/m2 Thick (mm) Unit

DEF220A/1270

WHITE Acrylic coated Fibreglass fabric (weave set)

Application

  • All types of thermal insulation and protection
  • Basic cloth for all kinds of finish treatment
50 1270 220 0.2 m
DEF220AB/1270

BLACK Acrylic coated Fibreglass fabric (weave set)

Application

  • All types of thermal insulation and protection
  • Basic cloth for all kinds of finish treatment
50 1270 220 0.2 m

Heat Treated Fabric

HEAT TREATED (CARAMELISED) Continuous use to 550oC Roll Length (mtrs) Width (mm) Weight g/m2 Thick (mm) Unit

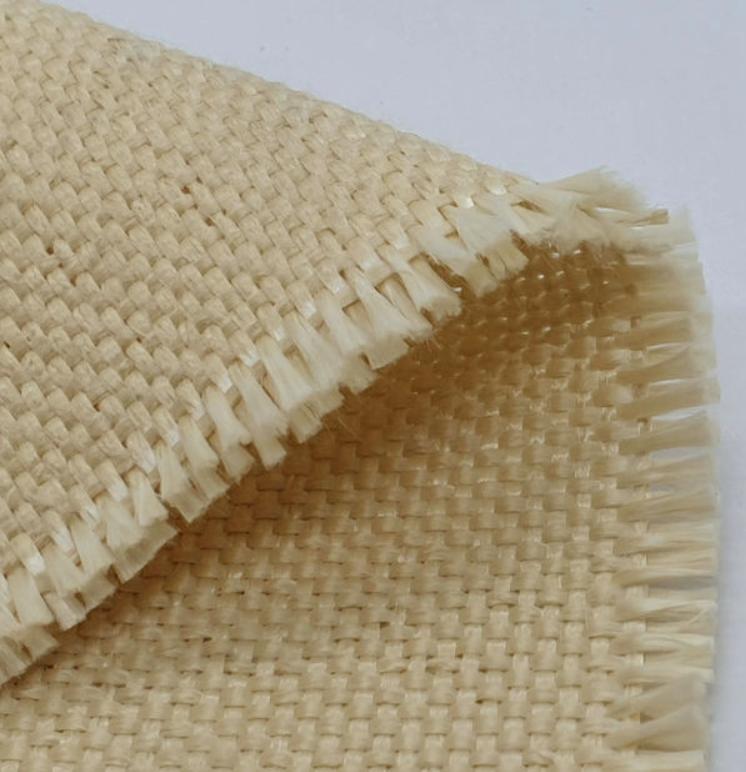

DEF600Y/1500

E glass fabric is woven by high quality E-glass texturized yarn, and then passes through an oven with high temperature in order to burn off the sizing and other organic elements in the cloth. After this heat treatment, fiberglass cloth will change to brown color and it will be smoke-free during the application. The fabric is also acrylic dip coated for weave locking the yarn to be fray resistant and easy to fabricators to cut and sew.

50 1500 600 0.8  m

DEF600HT/1500

E glass fabric is woven by high quality E-glass texturized yarn, and then passes through an oven with high temperature in order to burn off the sizing and other organic elements in the cloth. After this heat treatment, fiberglass cloth will change to brown color and it will be smoke-free during the application. The fabric is also acrylic dip coated for weave locking the yarn to be fray resistant and easy to fabricators to cut and sew.

50 1500 600 0.8  m

DEF1100HT

E glass fabric woven from high quality texturized yarns, and then passed through a high temperature oven in order to burn off the sizing and other organic elements in the cloth. After this heat treatment, fiberglass cloth will change to a brown colour and it will be smoke-free during the application.

Application:

No difference from fiberglass loomstate, other than for applications where smoke is not allowed.



50 1000 1100 1.5  m

DEF1200HT/152

This coating provides short temperature resistance of 1000°C and increased continuous temperature resistance temperature up to 800°C. Vermiculite coated fiberglass cloths increase the products abrasion resistance and adds to its ability to withstand direct flame, it also provide a dust suppression coating which allows for a safer work environment.



25 1520 1200 1.8 m

Graphite

Graphite Impregnated

 Continuous up to 700ºC

Roll Length (mtrs)

Width (mm)

Weight g/m2

Thick (mm)

Unit

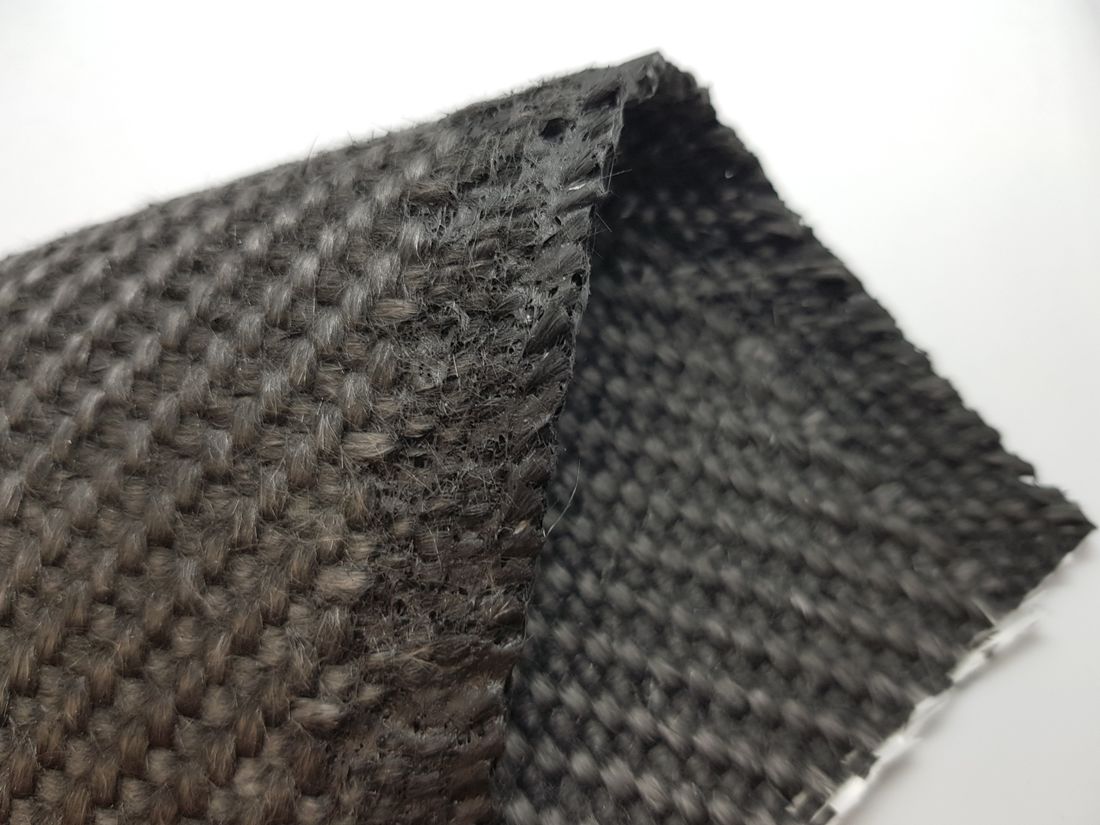

DEF2650GSOT

Coating of Graphite/Silicone Oil/PTFE on loomstate cloth. The Graphite improves the abrasion resistance of the glass filaments and is designed to be used in vibration or pulsation applications that require high temperature protection.

25 1500 2650 3.00 m

Dip Coated

DIP COATED

Continuous up to 550ºC

Roll Length (mtrs)

Width (mm)

Weight g/m2

Thick (mm)

Unit

DEF450A

Acrylic coated fabric (weave set)

Fiberglass fabric is non-asbestos products used for both thermal and electrical insulation in applications including heat shields, welding, stress relieving, removable insulation covers, gasket products, fire blankets, fire curtains, expansion joints and flue ducts. The A finish is Alkaline resistant copolymer finish that also weave sets the flexible fabric, manufactured from continuous filament non-texturised (i.e. smooth) yarns.

After a 28 day immersion of 5% NaOH solution, the average retention rate for tensile fracture strength is greater than 70%.

50 1500 450 0.45 m

DEF490RW/1500

(Alpha Product)

Rewettable fibreglass fabric, pre-pasted with adhesive and needs only to be dipped in water to soften and reactivate adhesion.

  • Adhesion - Bonds firmly to fiberglass, calcium silicate, mineral wool, urethane and asbestos.
  • Incombustibility Material is completely incombustible and meets all the requirements for Class 1 Sheathing materials.
  • Contour ability this fabric has been specifically designed to contour around tees and elbows uniformly and evenly.
  • Approvals US Coast Guard spec 164.009 Mil-l-24244, Mil-C-20079 G, Type 1, and Class 6.
45.72 1520 490 0.75 m

DEF840V/152

E-glass fabric woven from high quality texturized yarn, coated with vermiculite on both sides. Vermiculite is a natural mineral which provides a natural Inorganic finish to fibreglass. This coating provides short term temperature resistance of 1000°C and increased continuous temperature resistance up to 800°C.

50 1500 840 1 m

DEF916V/1570(New)

Darco DEF916V/1570 is a medium weight woven texturized fiberglass fabric impregnated with specially formulated vermiculite dispensers which provides high temperature and abrasion resistance properties for the manufacturer of welding protection, gaskets, flexible expansion joints, removable jackets and other types of fire control systems.

25 1570 916 0.9 m

DEF1070V/1500

E Glass Fabric Vermiculite Coated - Premium

25 1500 1070 1.4 m

DEF1150V/WR

E glass fabric woven from high quality texturised yarn with Stainless Steel wire in it, and then coated with vermiculite on both sides; finally an Acrylic Weave Locking Treatment is applied. The SS wire reinforcement increases the tensile strength greatly. Vermiculite is a natural mineral which provides a natural inorganic finish to fiberglass. This coating provides short temperature resistance of 1000°C and increased continuous temperature resistance temperature up to 800°C.

50 1000 1150 1.5 m

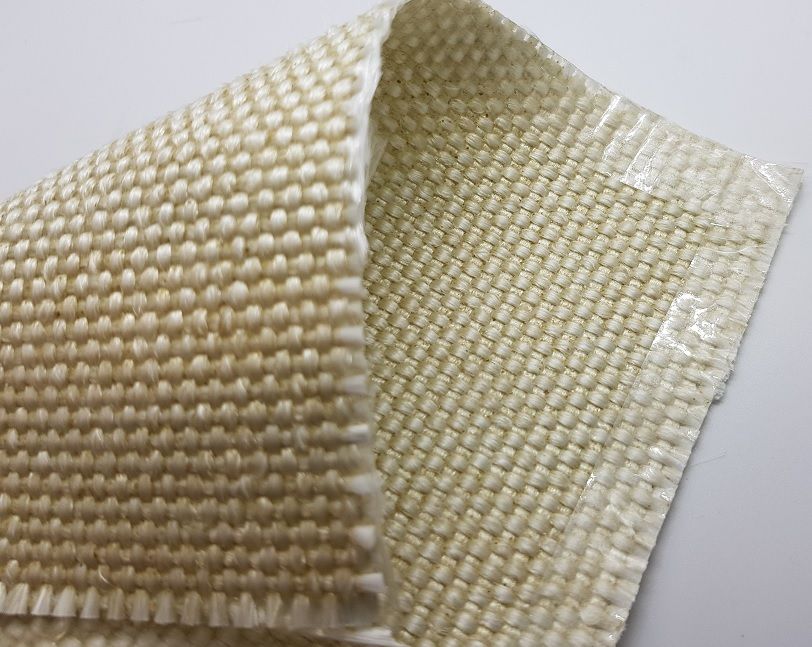

DEF1250V/152

E-glass fabric woven from high quality texturized yarn, and then coated with vermiculite on both sides. Vermiculite is a natural mineral which provides a natural inorganic finish to fiberglass.

This coating provides short temperature resistance of 1000°C and increased continuous temperature resistance temperature up to 800°C.

23 1520 1250 1.8 m

DEF1250VB/152

E-glass fabric woven from high quality texturized yarn, and then coated with Black vermiculite on both sides. Vermiculite is a natural mineral which provides a natural inorganic finish to fiberglass.

This coating provides short temperature resistance of 1000°C and increased continuous temperature resistance temperature up to 800°C

25 1520 1200 1.8 m

DEF1900V

E-glass fabric woven from high quality texturized yarn, and then coated with vermiculite on both sides. Vermiculite is a natural mineral which provides a natural inorganic finish to fiberglass.

This coating provides short temperature resistance of 1000oC and increased continuous temperature resistance temperature up to 800oC. Vermiculite coated fiberglass cloths increase the products abrasion resistance and adds to its ability to withstand direct flame, it also provide a dust suppression coating which allows for a safer work environment.

25 1000 1900 2.7 m

Aluminium Foil Faced Fabrics

ALUMINIUM FOIL FACED ALUMINIUM Film faced heat reflective foils & liquid splash resistance Roll Length (mtrs) Width (mm) Weight g/m2  Thick (mm) Unit

DEF220MY/1200 (INDENT)

(MYLAR) is a fiberglass cloth woven by high quality E-glass filament yarn, and then coated with aluminium and polyester film on one side. These fabrics provide good properties of flexibility, durability, heat and light reflection.

Application

It's the ideal and excellent fabrics used for cold insulation, reflective work wear, and pipe insulation.

50 1200 220 0.2 m

DEF460MY

(MYLAR) is a fiberglass cloth woven by high quality E-glass filament yarn, and then coated with aluminium and polyester film on one side. These fabrics provide good properties of flexibility, durability, heat and light reflection.

Application

It's the ideal and excellent fabrics used for cold insulation, reflective work wear, and pipe insulation.

50 1000 450 0.45 m

DEF640HTAL/1500

E Glass Fabric Heat Treated Aluminium Foil Laminated 22µ Foil.

Fibreglass fabric woven from high quality texturized yarn, and then passed through a high temperature oven in order to burn off the sizing and other organic elements in the cloth, and then laminated with 18 or 25 micron thick aluminium foil on one side. This fabric provides good properties of flexibility, durability, heat and light reflection.

DEF640AL/1500 has high temperature adhesive rated to 250ºC

Application:

- used for welding blankets, fire protecting curtains, fire protecting work wear, pipe and furnace insulation.

50 1520 640 0.70 m

DEF650AL/SW

E Glass Fabric Aluminium Foil Laminated 18µ Foil Square Weave

50 1000 650 0.59 m
DEF660AL/HKO

E Glass Fabric Aluminium Foil Laminated - MED Cert

50 1000 660 0.78 m

DEF663HTAL/152

(Alpha Fabric)

E glass fabric that is laminated with a special higher temperature adhesive to Aluminium foil to provide a vapour retarder and a barrier to water and oil.

The product has been specifically designed as a flange shield material. Since it must meet Coast Guard Specification, a very low percentage of adhesive is used. Material should be tested prior to use for commercial applications.

DEF663AL/1500 (Alpha 2025/9480HT) meets the requirements of Coast Guard Specification 164.009 for fire retardant material and is included in Military Specification MIL-C-20079G, Type 1, Class 10. Also meets Military Specification MIL-I-24244B and NRC Guide 1.36

45.72 1520 663 0.66 m

DEF1000HTAL

Standard grade fiberglass cloth is a non asbestos product used for thermal insulation. Applications include, heat shields, welding, stress relieving, removable insulation covers, gaskets, fire blankets, fire curtains, expansion joints, and flue ducts. CARAMELISED is tan in colour and is loomstate that has been heat cleaned to lower volatiles.

50 1000 1000 1.8 m

Neoprene

NEOPRENE COATED BLACK Roll Length (mtrs) Width (mm)  Weight g/m2 Thick (mm) Unit
DEF1080N & DEF1080N/1500 (Datasheet)

E glass fabric woven from high quality filament yarn, and then coated with a specially formulated black acrylic elastomer on two sides. This fabric provides good properties of flexibility, durability, water and oil proof, abrasion resistance, and suitable for most chemical splash resistance.

25 - 50 1000 - 1500 1080 1.3 m
DEF1600N

Neoprene coated E glass fabric woven from high quality texturized yarns

Applications: No difference from fiberglass loomstate, but especially for the application where smoke is not allowed.









50 1000 1600 2.0 m

Polyurethane

Polyurethane COATED



Roll Length (Mtrs) Width (mm) Weight g/m2 Thick (mm) Unit

DEF460P/PU2

This fabric is a premium woven fiberglass fabric coated with a specifically formulated micronised aluminium polymer which provides a heat reflecting surface as well as other properties for the manufacture of Smoke Curtains, Smoke Blinds, Cavity Wall Fire Barriers and other types of smoke and Fire Control Systems.

50 1000 460 0.43 m

DEF720P1/WR/1200

Polyurethane Coated 1 side, wire reinf GREY

  • Flame-retardant finish, resistant up to a continuous temperature of approx. 700°C, short exposure up to approx. 750°C.
  • Good antislip properties and fray proof

Available in different shades

50 1200 720 0.7 m

DEF780P2/WR/1200

Grey, flame retardant PU- coating with aluminium pigments, alternatively one-sided
or double-sided.


- Free from solvents and halogen
- No thermal decomposition up to 200°C
- Maximum application temperature 500°C, shortly up to 600°C Increase of antislip properties and fray proof

50 1200 780 0.7 m

Silicone Coated - GREY

SILICONE COATED  GREY Roll Length (Mtrs) Width (mm) Weight g/m2  Thick (mm) Unit

DEF560P/GLS2/1550

E glass fabric woven from premium quality filament yarn, and then coated with a specially formulated wet (liquid) silicone rubber and aluminum pigment on two sides. This fabric provides good properties of flexibility, durability, water and oil proof, abrasion resistance, and excellent resistance for general chemicals.

Certified to AS1530.3. Ref AWTA Fire Test Report 7-596811-BW dated 8 April 2014.

50 1550 560 0.45 m

DEF560GDS2/1550

E glass fabric woven from premium quality filament yarn, and then coated with a specially formulated drier (liquid) silicone rubber which is more slippery to make sewing easier. This fabric provides good properties of flexibility, durability, water and oil proof, abrasion resistance, and excellent resistance for general chemicals.

50 1550 560 0.45 m

DEF570GLS2/1500/V

E glass fabric woven from premium quality filament yarn, and then coated with a specially formulated wet (liquid) silicone rubber and aluminum pigment on two sides. This fabric provides good properties of flexibility, durability, water and oil proof, abrasion resistance, and excellent resistance for general chemicals.

Certified to AS1530.3. Ref AWTA Fire Test Report 7-596811-BW dated 8 April 2014.

50 1500 570 0.45 m
DEF595GS2/1550/A

E Glass Fabric Silicone Coated 2 sides Grey - US MIL Spec

50 1550 595 0.46 m

DEF725GS1/WR/1200

E glass fabric that is coated with a flame retardant PUR- coating with aluminum pigments and reinforced with stainless steel wire to provide a higher tensile strength.

50 1200 590 0.5 m

DEF1060GLS2/WR

E Glass Fabric Silicone Coated 2 sides Wire Reinforced Grey

50 1230 1060 0.9 m

DEF1150GLS2/1520

E glass fabrics woven from high quality filament yarn, and then coated with a specially formulated wet (liquid) silicone rubber and aluminum pigment on two sides. These fabrics provide good properties of flexibility, durability, water and oil proof, abrasion resistance, and excellent resistance for general chemicals.

25 1520 1150 0.94 m

Silicone Coated - RED

SILICONE COATED RED

Roll Length (Mtrs)

Width (mm) Weight g/m2  Thick (mm) Unit

DEF610P/RLS2/1500/46M - (New)

E Glass Fabric Silicone Coated 2 sides Iron Red

46 1500 610 0.40 m

DEF1150RLS2/1520

E glass fabrics woven from high quality filament yarn, and then coated with a specially formulated wet (liquid) silicone rubber and aluminum pigment on two sides. These fabrics provide good properties of flexibility, durability, water and oil proof, abrasion resistance, and excellent resistance for general chemicals.
25 1520 1150 1.7 m

DEF1770RLS (New)

Darco DEF1770RLS2 is a fiberglass fabric calendered with a special silicone rubber. It has good water and oil resistant, fire resistance, UV resistance, chemical resistance, non-toxic and so on. It can be used continuously between -50°C+260°C.

Application

Fabric Expansion Joint, Convey Belt, Removable Insulation Covers, etc.

50 950mm 1040mm 1250mm 1770 1.0 m

DEF1910RLS1

E glass fabrics woven from high quality filament yarn, and then coated with a specially formulated wet (liquid) silicone rubber and aluminum pigment on one sides. These fabrics provide good properties of flexibility, durability, water and oil proof, abrasion resistance, and excellent resistance for general chemicals.

25 1000 1910 1.98 m

DEF1800RLS2



DARCO DEF1800RLS2 is a texturized woven fiberglass fabric with a specially formulated, flame retardant silicone rubber coating which provides greater life and improved resistance to abrasion, flexing, tear and puncture.

Application
This fabric is designed for fabricating of fire & smoke curtains. It also can be used for removable insulation pads, flange and valve covers, welding curtains, equipment covers and compensators and other types of fire control systems.

25 1000 1800 1.8 m

DEF3500RLS2/Y

RED Silicone coated fiberglass - 3500gsm

Properties:

  • Coating used in temperature from -70°C to 300°C
  • Ozone, oxide, light and weather aging resistance, excellent weather ability used outdoors and ages up to 10 years can be expected.

 Application:

It's the ideal and excellent fabric used for jacketing, welding blanket, fire protecting curtain, expansion joints, Non-metallic compensator, and anti-corrosion sector.

25 1000 3500 2.4 m

Silicone Coated - BLACK

E glass fabric woven from high quality E-glass filament yarn, and then coated with a specially formulated wet (liquid) silicone rubber and black pigment on one side. This fabric provides good properties of flexibility, durability, water and oil proof, abrasion resistance, and excellent resistance for general chemicals

SILICONE COATED  BLACK Roll Length (Mtrs) Width (mm) Weight g/m2 Thick (mm) Unit

DEF860BLS1

Darco DEF860BLS1 is an E glass fabric woven from high quality E-glass filament yarn, and then coated with a specially formulated wet  liquid) silicone rubber and black pigment on one side. This fabric provides good properties of flexibility, durability, water and oil proof, abrasion resistance, and excellent resistance for general chemicals

50 1000 860 0.9 m

Teflon

TEFLON COATED FABRIC (Elastomer top coated for extra protection)



Roll Length (mtrs)

Width (mm) Weight g/m2 Thick (mm) Unit

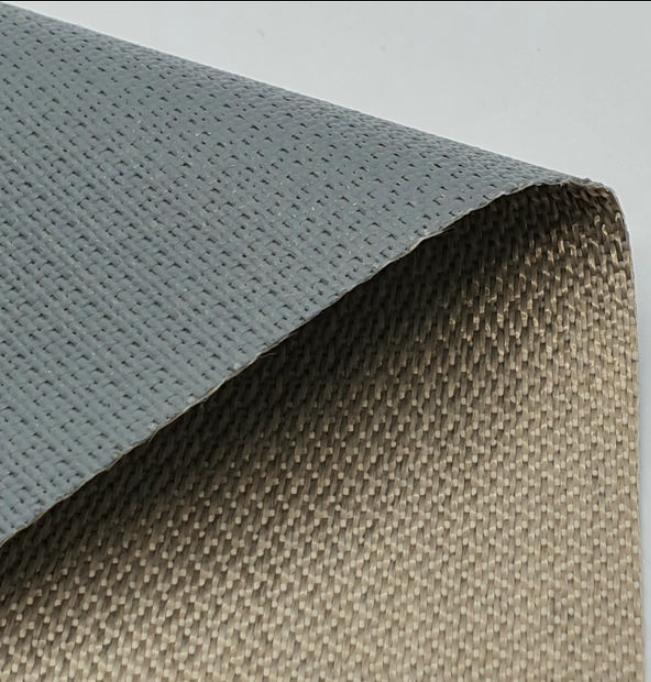

DEF560F1/1524/SH/A

Fibreglass fabric, 560gsm, PTFE Teflon 1 side, 1.52m x 50m (ALPHA MARITEX STYLE FCF-1650)

50 1500 560 0.42 m

DEF580F1/1520

Fibreglass Teflon Coated 1 Side, Premium softer handle

50 1520 580 0.42 m

DEF612/1524/A

E Glass Fabric Teflon Coated 2 side - Premium Grey (ALPHA MARITEX STYLE FCF-1800)

45.72 1524 612 0.41 m

Silica

SILICA GLASS FABRIC

Continuous use > 1000ºC (Similar/alternative to the American Refrasil and Armasil)

Roll Length (Mtrs) Width (mm) Weight g/m2 Thick (mm) Unit

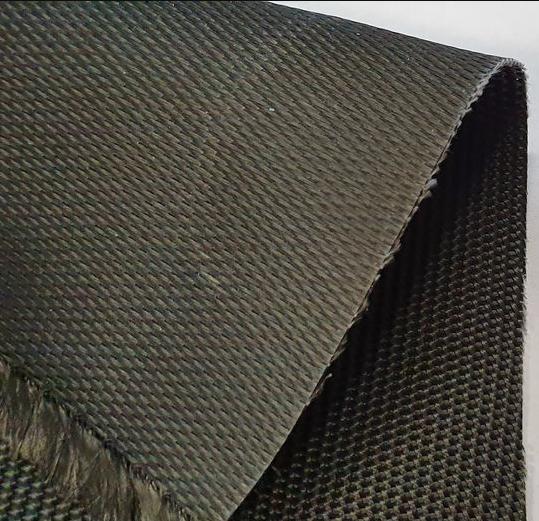

DSF630WBL/1524

Darco DSF630WGB/1524 is a silica glass fabric woven from high quality texturized yarn, and then coated with a black acrylic on both sides. This cloth provides short temperature resistance of 1400°C and increased continuous temperature resistance up to 1100°C. Acrylic coating increases the products abrasion resistance, it also provides a dust suppression coating which allows for a safer work environment.

Application
- Welding blankets
- Fire blankets
- Fire proof curtains
- Heat shields, etc.

50 1524 630 0.7 m

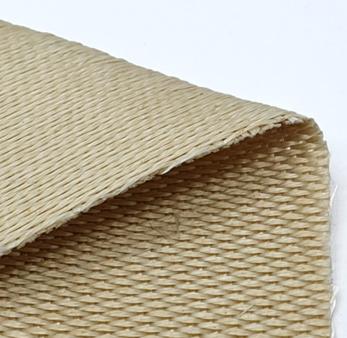

DSF630WGB/1524

Darco DSF630WGB/1524 is a silica glass fabric woven from high quality texturized yarn, and then coated with a Polyvinyl Acetate base weave lock finish. This cloth provides service temperature of 1100°C continuous, increases the products abrasion resistance, it also provides a dust suppression coating which  allows for a safer work environment.

Application
- Welding blankets
- Fire blankets
- Fire proof curtains
- Heat shields, etc.



50 1524 630 0.74 m

DSF650V/920R (New)

Silica Fabric Vermiculite Coated on both sides, mainly used above 1000°C (above E glass rating) for all high temperature applications where the need for thermal insulation and/or protection is required.

50 920 650 0.7 m

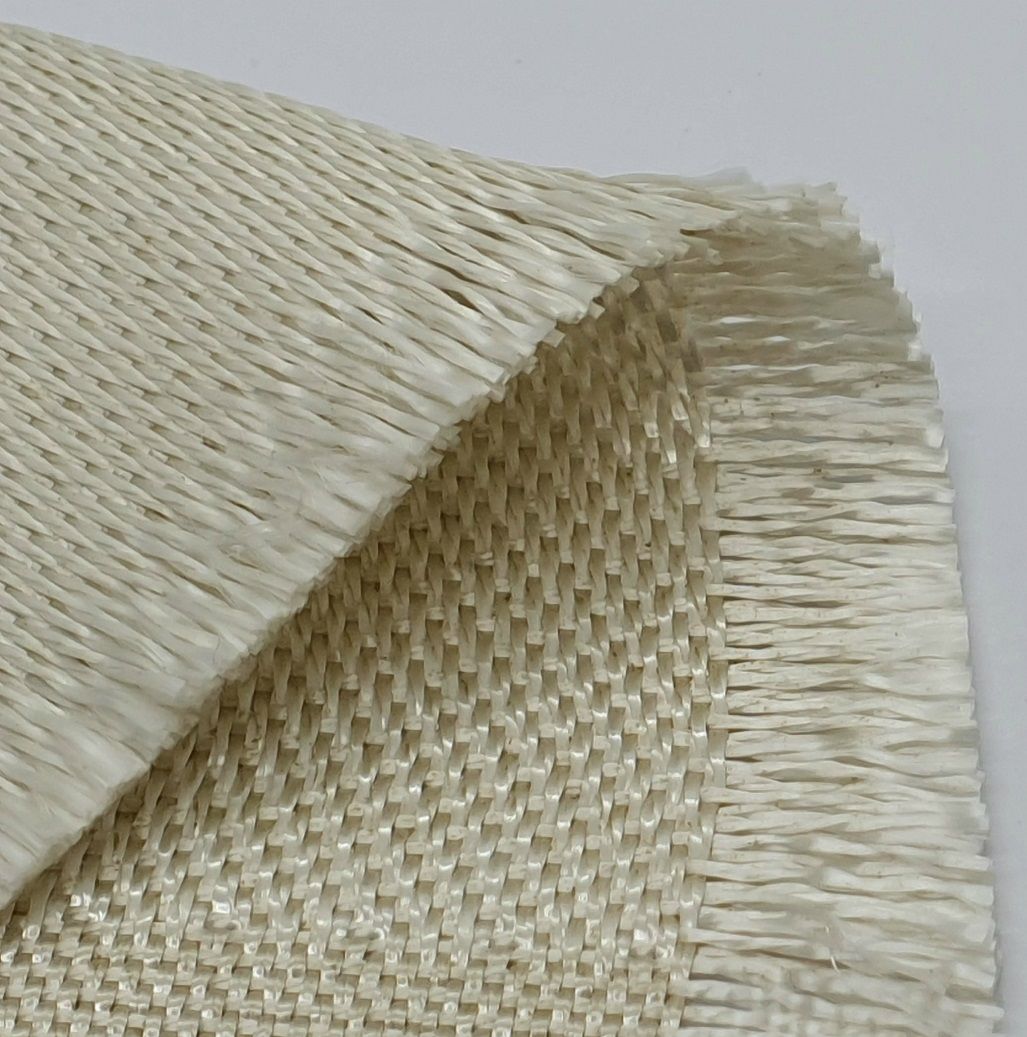

DSF650V

Darco woven (“Puresil”) silica glass fabrics are woven continuous filament amorphous silica (non-respirable fibre yarns). Silica fabrics are mainly used above 550°C (above E glass rating) for all high temperature applications where the need for thermal insulation and/or protection is required. Silica cloth provides short temperature resistance of 1400°C and increased continuous temperature resistance up to 1100°C. Hygienically safe and  provide a viable alternative to asbestos, fibreglass, refractory ceramic fibres where safety performance and cost effectiveness are the key issues.

Application
- Welding blankets
- face curtains
- turbine covers
- molten metal filtration
- cable tray insulation
- steam pipe lagging.

50 935 650 0.8 m

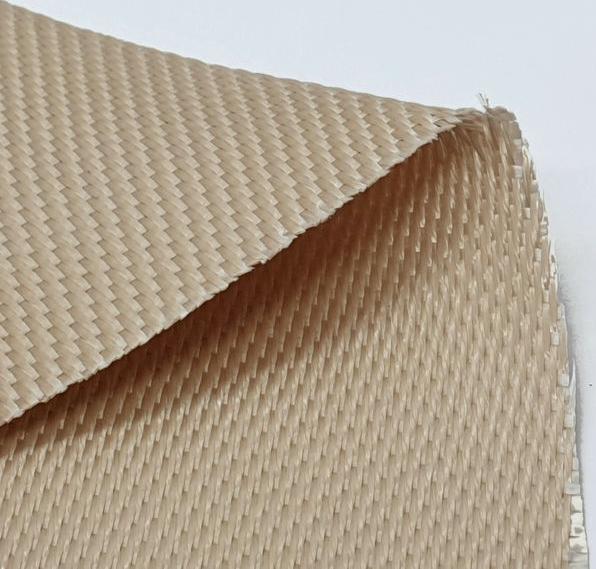

DSF650CV

Woven silica glass vermiculite coated fabrics are woven with continuous filament amorphous silica (non-respirable fibre yarns). Silica cloth provides short temperature resistance of 1400°C and increased continuous temperature resistance up to 1100°C.



50 935 650 0.8 m

DSF1150/A/BR

Silica cloth provides short temperature resistance of 1400°C and increased continuous temperature resistance up to 1100°C. Acrylic coating increases the products abrasion resistance, it also provides a dust suppression coating which allows for a safer work environment.



25 1000 1150 1.25 m

DSF1200CV

Darco woven silica Calgon-vermiculite coated glass fabrics are woven continuous filament amorphous silica (non-respirable fibre yarns). Silica cloth provides short temperature resistance of 1400°C and increased continuous temperature resistance up to 1100°C.

for all high temperature applications where the need for thermal insulation and/or protection is required

50 935 1200 1.3 m

Pre-Oxidized Carbon

PRE-OXIDIZED CARBON continuous use > 1000oC

Roll Length (mtrs)

Width (mm) Weight g/m2  Thick (mm) Unit
DPCF516

Darco DPCF516  is made of texturized pre-oxidized carbon fiber yarn, it has good properties such as high temperature resistance to 1000°C, low thermal conductivity coefficient, anti-corrosion, high dust-accommodation and high filterability, moreover it does no harm to the human body and is a good replacement for asbestos products. Soft and comfortable to handle, not itchy, fire proof.

Ideal softer thicker (1.75 mm thick) more insulating alternative to similar price DSF650CV silica fabric (0.6 mm thick) for welding protection and removable insulation covers hot face lining

Applications:

- It’s the ideal welding blanket, fire protecting curtain for soft non itchy fabric.

50

1000 516 1.75 m

Ceramic Fibre

Ceramic Fibre

continuous use > 1100oC

Roll Size

Mtrs

Width (mm) G/m² Thick (mm) Unit

DCF3/WR

Darco DCF3/WR & DCF3HT/WR (Heat Treated) ceramic fibre fabric is a woven fabric made of high quality ceramic fibre yarns. It can be used for high temperature applications up to 1000°C. The cloth is reinforced with fibreglass filament, and stainless steel wire. It contains a certain amount of binder material which is normally burned at lower temperature and does not affect the insulation property.

– Note: The Grams per Sqm for Heat Treated fabric can lose up to 17% of its weight from Organic materials during the treatment.

Application
It can used as expansion joints, safety blankets, curtains, welding blankets, protective and insulating covers, shields, gaskets, cable or pipe wrapping, etc. It has been widely used in welding, foundry works, aluminium and steel mills, boiler insulation and seal, shipyards, refineries, power plants and chemical plants.

30 1000 1500 2.5 m

EPDM & NATURAL RUBBER

  NYLON REINFORCED E.G. FOR FLEX CONNECTORS, FLAPS, Dam lying

Roll Length (Mtrs)

Width (mm) Weight g/m2  Thick (mm) Unit

DPEPDM3

Darco DPEPDM3 is a black premium grade 70 EPDM rubber sheet, reinforced with a tear resistant Nylon monofilament fabric. It has high temperature resistance and chemical resistance to acids and alkalis. It is completely UV stabilized making it highly resistant to ozone effects and extreme weather conditions and is ideal for long term outdoor applications.

Application
The specially designed Nylon monofilament fabric reinforcement will not allow fluid penetration and gives EPDM Insertion improved tear strength and dimensional stability, making EPDM Insertion suitable for gasket sealing applications.

10 1200   3.0 m

DNR/SBR3 and DNR/SBR6

Darco DNR/SBR3 & DNR/SBR6 is a black, superior grade, blended 60 Duro Natural and Synthetic rubber sheet, reinforced with heavy Conveyor Belt Nylon fabric. The strong Nylon fabric reinforcement gives extremely high tear strength and dimensional stability and making it suitable for heavy duty hanging applications.
Application
Darco Heavy Duty Natural Insertion Rubber has been designed primarily for use as a flexible strip, pad, curtain or skirt and is mainly used for Sealing, insulating, isolating and Protecting, steel or other surfaces.

Its properties make it suitable for use in a wide range of applications including:

- Transport mud guards and flaps
- Machinery and heavy equipment flaps
- Fencing protection
- Cricket net protection
- Equine rail dividers
- Round yard barriers
- Heavy duty skirts and curtains
- Insulating strip
- Isolation barriers
- Heavy duty dust seals and covers
- High strength reinforced strips
- Variety of sealing applications

10 1200   3.0 m
