Needlemats
EGlass • Silica • Biosoluble Superfelt • Foil Faced Insulation wrap • Pre-Oxidised Carbon Fibre Mat/Panther Felt • HeatShields
EGLASS NEEDLEMAT - Packed 4 x Rolls per pallet | Darco style DENM series Needlemat insulation is composed of 100% selected grade type “E” glass fibres needled together into a mat form. It is non-respirable, incombustible asbestos free and contains no chemical binders. Above all Darco Needlemat has vibration resistant properties allowing it to be successfully used for engine exhaust jacketing, turbo covers and silencer packing. Other uses include: seals in the glass industry, oven insulation, industrial furnaces, boilers and kilns and is an exceptional material for use as removable insulation pads for pipes, valves and motors. Freight Charge will apply - Please request transit quote (Datasheet) | Roll Size Mtrs | Width (mm) | G/m² | Thick (mm) | Unit |
| | | | | | | |
| DENM06/V/30M | E glass Needlemat 30x1000x6, 800gsm 133kg/m³ | 30 | 1000 | 810 | 6 | Roll |
| DENM12/L (+) | Eglass Needlemat 12mm Thick, 20m x 1200 2000gsm 167kg/m³ | 20 | 1200 | 2000 | 12 | Roll |
| DENM25/L (+) | E Glass 25mm x 1524 x 13.7m 4500gsm - 180kg/m3 | 13.7 | 1524 | 4500 | 25 | Roll |
| DENM25/V/10M/1500 (+) (Valmiera MED certified) | E glass Needlemat 10m x 1500 mm x 25 mm, 4500gsm | 10 | 1500 | 4500 | 25 | Roll |
| DENM25/V/13.7M/1524 (+) (Valmiera MED certified) | E glass Needlemat 13.7m x 1524 mm x 25 mm, 4500gsm | 13.7 | 1524 | 4500 | 25 | Roll |
SILICA GLASS NEEDLEMAT - Packed 4 x Rolls per pallet | Darco style DSNM series Needlemat insulation is composed of
100% high silica glass fibres needled together into a strong high
temperature, corrosion and vibration resistant mat. Silica
Needlemat is processed in such a way to maximise thermal and
acoustic insulation efficiency. It is non respirable, non-itchy, noncombustible,
asbestos free and contains no chemical binders.
Above all Silica Needlemat has vibration resistant properties allowing
it to be successfully used for engine exhaust jacketing, turbo covers
and silencer packing. Other uses include: seals in the glass industry,
oven insulation, industrial furnaces, boilers and kilns and is an
exceptional material for use as high temperature removable reusable
insulation covers. Freight Charge will apply - Please request transit quote (Datasheet) | Roll Size Mtrs | Width (mm) | G/m² | Thick (mm) | Unit |
| | | | | | | |
| DSNM12/V/20M (Valmiera MED certified) | 96% Silica Needlemat 20m x 1200 mm x 12 mm ,2000gsm 167kg/m³, 24 m2/roll | 20 | 1000 | 1000 | 6.0 | Roll |
| DSNM12/180/90S | Brisbane STK Silica 12mm x 1500 mm x 22.8m 180kg/m³ 2160gsm 88-90% Silica, 34.2 m2 / roll | 22.8 | 1000 | 1000 | 6.0 | Roll |
| DSNM25/V/10M (Valmiera MED certified) | 96% Silica Needlemat 10m x 1500 mm x 25 mm, 4500gsm, 15 m2 / roll | 10 | 1200 | 2000 | 12.0 | Roll |
| DSNM25/90S | 90% Silica 25mm x 1500 mm x 13.7m 180kg/m³ 4500gsm, 20.55 m2/roll | 13.7 | 1524 | 4500 | 25.0 | Roll |
| Biosoluble Superfelt 1,200°C | Soluble Fiber Blankets are a kind of strong, lightweight, flexible insulating products manufactured by using Advanced spinning technology, display very low thermal conductivity, super thermal shock resistance, low heat storage and the excellent sound absorption. This unique vitreous fiber has very high solubility in body fluids, so has no hazard classification. | Roll Size Mtrs | Width (mm) | G/m² | Thick (mm) | Unit |
| | | | | | | |
| SUPERFELT25 | Superfelt 1200C, 140kg/m3, 25mm x 1220 mm x 10 m | 10 | 1220 | 140000 | 25 | Roll |
| Aluminium Foil faced insulation Wrap
| DETW4003 is fiberglass needle mat using E-glass fiber roving
as the raw materials while each strand is chopped into a 2-3
inch fraction via the fiber cutting machine and further
decomposed into extreme tiny blanket shape through the
cotton carding engine. Subsequently, the needled fabrics are
ceaselessly sewn by thousands of needles, then faced by
aluminium foil bonded to fiberglass cloth to increase heat and
light reflection. | Roll Size Mtrs | Width (mm) | G/m² | Thick (mm) | Unit |
| | | | | | | |
| DETW4003AL (Datasheet) | Fiberglass Neelemat 400mm x 3mm x 7.7m Aluminium Faced Wrap | 7.7 | 400 | 4 | 3.00 | Roll |

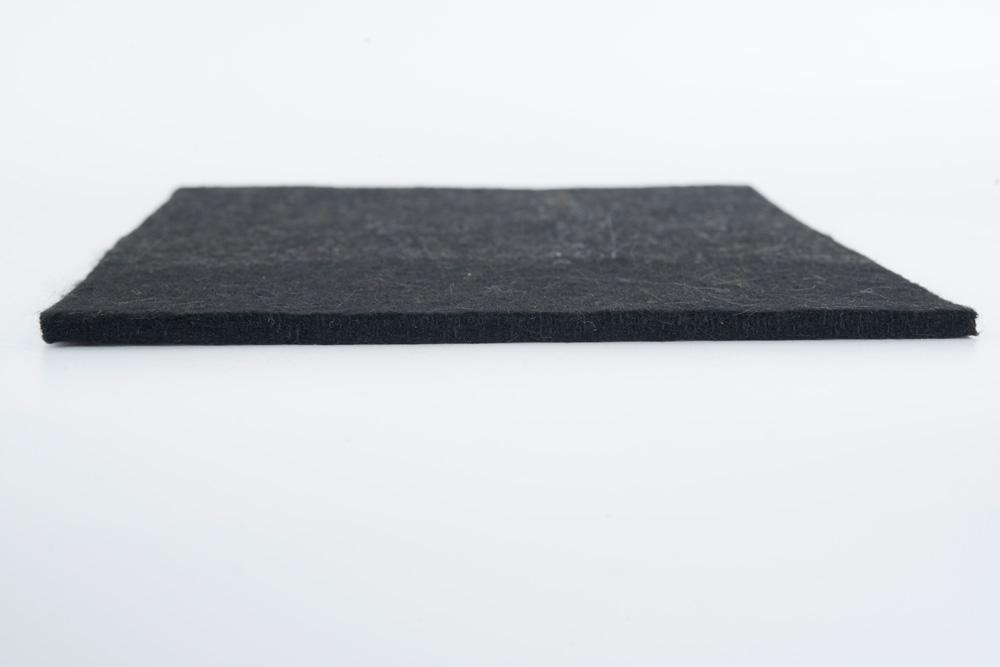

| PREOXIDISED CARBON FIBRE MAT - PANTHER FELT | Darco DPCM Series (also known as Panther Felt)
is a Pre-Oxidized Carbon Felt inherently flame
resistant insulation that can withstand
temperatures up to 980°C / 1800°F. This high
temperature felt is woven from Polyacrylonitrile
fibers (PAN fiber), a precursor to carbon fiber. | Roll Size Mtrs | Width (mm) | G/m² | Thick (mm) | Unit |
| | | | | | | |
| DPCM600/5 (Datasheet) | 5mm Thick Pre-oxidised Carbon Fiber Mat 600gsm | 50 | 1000 | 600 | 5 | m |
| DPCM400/4 (Datasheet)) | 4mm Thick Pre-oxidised Carbon Fiber Mat 400gsm | 50 | 1000 | 400 | 4 | m |

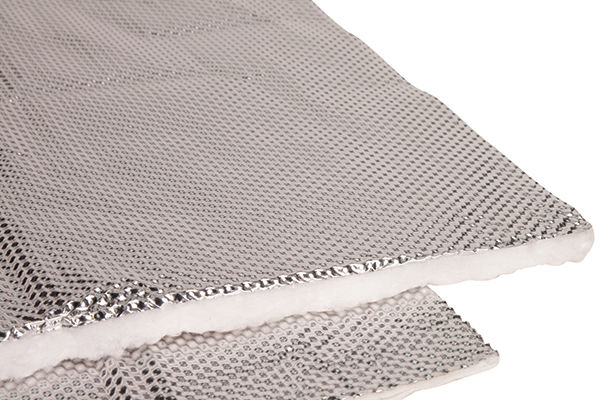

STITCHBONDED S/S FOIL FACED NEEDLEMAT (HEATSHIELDS) | Darco Heat shield special stitch bonded needlemat holds together much
better than plain needlemat especially on hot vibrating exhaust systems.
The s/s foil is more durable than aluminium foil, especially
underbody, for better puncture resistance - Rated to 1000°C. (Datasheet) View our Automotive Insulation solutions | Roll Size Mtrs | Width (mm) | G/m² | Thick (mm) | Unit |
| | | | | | | |
| DSENM6/1000/SS/HKO | Stitchbonded S/S Foil Faced 40m x 1m 1000gsm - E Glass, rated to 600°C (HKO Marine certified - European) | 40 | 1000 | 1000 | 6 | m |
| DSSNM6/1000/SS/HKO | Stitchbonded S/S Foil Faced 40m x 1m 1000gsm - Silica, rated to 1000°C (HKO Marine certified - European) | 40 | 1000 | 1000 | 6 | m |
